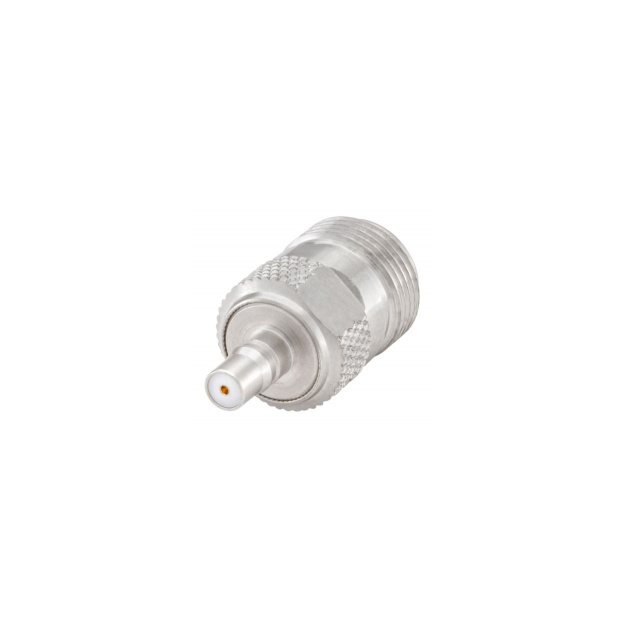

28K153-K00N5

Active

Rosenberger

QMA ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

QMA ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	28K153-K00N5

Adapter Series	N to QMA
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	QMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Adapter Series	Body Finish	Fastening Type	Convert To (Adapter End)	Frequency - Max [Max]	Center Contact Plating	Insertion Loss	Convert From (Adapter End)	Adapter Type	Impedance	Style	Operating Temperature [Max]	Operating Temperature [Min]	Conversion Type	Mating Cycles	Mounting Type	Body Material	Center Contact Material	Dielectric Material	Center Gender
Rosenberger 28K153-K00N5	N to QMA	White Bronze	Snap-On Threaded	Female Socket QMA Jack	11 GHz	Gold	0.05 dB	Female Socket N Jack	Jack to Jack	50 Ohms	Straight	85 °C	-40 °C	Between Series	500	Free Hanging (In-Line)	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Female to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 87.43

General part information

Adapter Coaxial Connector N Jack, Female Socket To QMA Jack, Female Socket 50 Ohms
