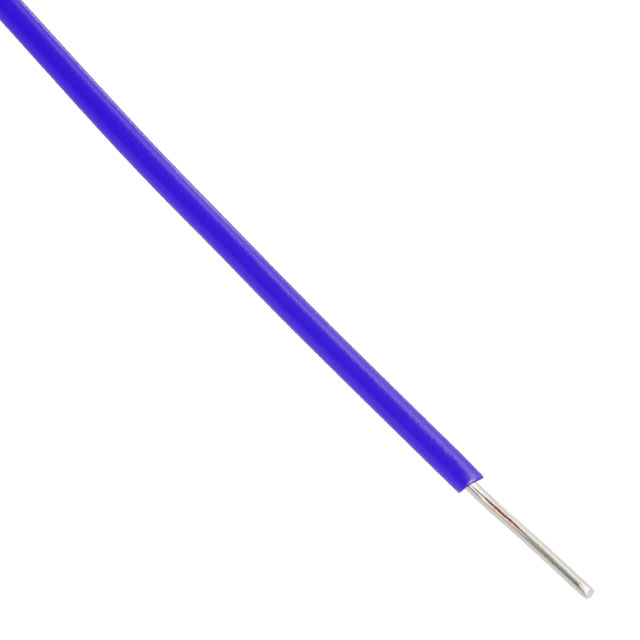

2636 BL001

Active

ALPHA WIRE

HOOK-UP SOLID 36AWG BLUE 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2636 BL001

Active

ALPHA WIRE

HOOK-UP SOLID 36AWG BLUE 1000'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2636 BL001

Cable Type	Hook-Up
Conductor Material	Nickel Coated, Copper
Conductor Strand	Solid
Features	High Temperature, Chemical Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.43 mm
Jacket (Insulation) Diameter [diameter]	0.017 in
Jacket (Insulation) Material	Perfluoroalkoxy (PFA)
Jacket (Insulation) Thickness	0.006 in
Jacket (Insulation) Thickness	0.15 mm
Jacket Color	Blue
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-150 °C
Voltage	600 V
Wire Gauge	36 AWG

2636 Series

Part	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket Color	Features	Conductor Strand	Cable Type	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Length [x]	Length [x]
ALPHA WIRE 2636 OR001	Copper Nickel Coated	0.006 in	0.15 mm	600 V	Orange	Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C	1000 ft	304.8 m
ALPHA WIRE 2636 GR001	Copper Nickel Coated	0.006 in	0.15 mm	600 V	Green	Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C	1000 ft	304.8 m
ALPHA WIRE 2636 BR001	Copper Nickel Coated	0.006 in	0.15 mm	600 V	Brown	Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C	1000 ft	304.8 m
ALPHA WIRE 2636 RD001	Copper Nickel Coated	0.006 in	0.15 mm	600 V	Red	Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C	1000 ft	304.8 m
ALPHA WIRE 2636 BL001	Copper Nickel Coated	0.006 in	0.15 mm	600 V	Blue	Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C	1000 ft	304.8 m
ALPHA WIRE 2636 WH005	Copper Nickel Coated	0.006 in	0.15 mm	600 V		Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C			30.5 m	100 ft
ALPHA WIRE 2636 YL001	Copper Nickel Coated	0.006 in	0.15 mm	600 V	Yellow	Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C	1000 ft	304.8 m
ALPHA WIRE 2636 YL005	Copper Nickel Coated	0.006 in	0.15 mm	600 V	Yellow	Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C			30.5 m	100 ft
ALPHA WIRE 2636 BR005	Copper Nickel Coated	0.006 in	0.15 mm	600 V	Brown	Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C			30.5 m	100 ft
ALPHA WIRE 2636 BK005	Copper Nickel Coated	0.006 in	0.15 mm	600 V	Black	Chemical Resistant High Temperature UV Resistant	Solid	Hook-Up	Perfluoroalkoxy (PFA)	36 AWG	0.43 mm	0.017 in	300 °C	-150 °C			30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 571.01
		3	$ 532.08
		5	$ 502.88
		10	$ 476.93
		25	$ 421.77

Description

General part information

2636 Series

36 AWG Hook-Up Wire Solid Blue 600V 1000.0' (304.8m)
