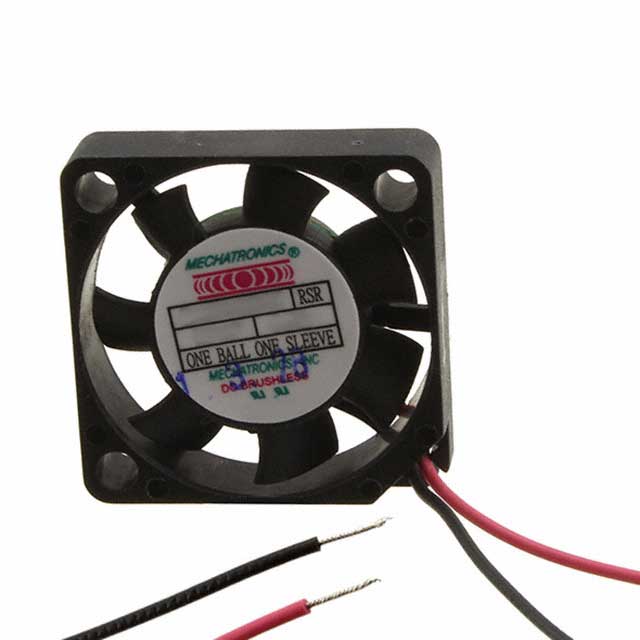

MA2506M12C-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 25X6.1MM 12VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 25X6.1MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MA2506M12C-RSR

Approval Agency	cUL, TUV, UL
Bearing Type	1 Ball/1 Sleeve
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	19 dB(A)
RPM	8500 RPM
Size / Dimension [x]	25 mm
Size / Dimension [z]	25 mm
Static Pressure	22.4 Pa
Static Pressure	0.09 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13 VDC
Voltage Range [Min]	6 VDC
Weight	0.018 lb
Weight	8.16 g
Width [y]	6.1 mm

Part	Voltage - Rated	Weight	Weight	Size / Dimension [x]	Size / Dimension [z]	Width [y]	RPM	Current Rating (Amps)	Fan Type	Termination	Voltage Range [Min]	Voltage Range [Max]	Features	Approval Agency	Static Pressure	Static Pressure	Bearing Type	Material - Blade	Noise
Mechatronics Bearing Group MA2506M12C-RSR	12 VDC	0.018 lb	8.16 g	25 mm	25 mm	6.1 mm	8500 RPM	60 mA	Tubeaxial	2 Wire Leads	6 VDC	13 VDC	Thermal Overload Protector (TOP)	cUL TUV UL	22.4 Pa	0.09 in H2O	1 Ball/1 Sleeve	Polybutylene Terephthalate (PBT)	19 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 25mm L x 25mm H 1 Ball/1 Sleeve 1.6 CFM (0.045m³/min) 2 Wire Leads
