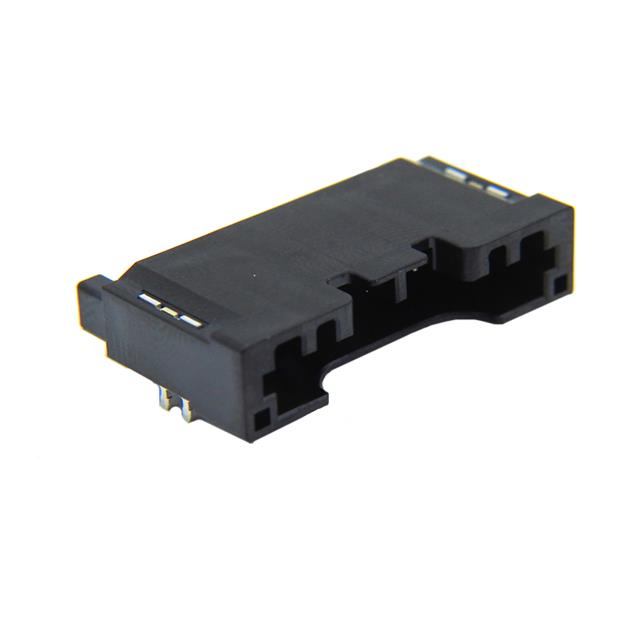

IMSA-13103B-10Y900
ActiveIRISO USA Inc.
HEADER SMT RA 10POS KEY-A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMSA-13103B-10Y900
ActiveIRISO USA Inc.
HEADER SMT RA 10POS KEY-A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMSA-13103B-10Y900 |
|---|---|
| Connector Type | Plug |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Holder |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 6.5 mm |
| Insulation Height | 0.256 in |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
IMSA-13103B Series
| Part | Contact Type | Insulation Material | Insulation Color | Features | Fastening Type | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Shrouding | Insulation Height | Insulation Height | Contact Finish - Post | Pitch - Mating [x] | Pitch - Mating [x] | Number of Rows | Style | Voltage Rating | Mounting Type | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 20 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 2 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 4 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 4 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 10 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 20 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 20 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 2 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 8 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
IRISO USA Inc. | Male Pin | Polyphenylene Sulfide (PPS) | Black | Solder Retention | Latch Holder | 8 | 1 µm | 39.4 µin | Plug | Shrouded - 4 Wall | 6.5 mm | 0.256 in | Tin | 0.079 in | 2 mm | 1 | Board to Cable/Wire | 50 VAC | Surface Mount Right Angle | All | 125 °C | -40 °C | Copper Alloy | 3 A | 1 çm | 39.4 çin | Square | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.42 | |
| 10 | $ 1.20 | |||
| 100 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 1.42 | ||
| 10 | $ 1.20 | |||
| 100 | $ 1.08 | |||
| Tray | 350 | $ 0.69 | ||
Description
General part information
IMSA-13103B Series
Connector Header Surface Mount, Right Angle 10 position 0.079" (2.00mm)
