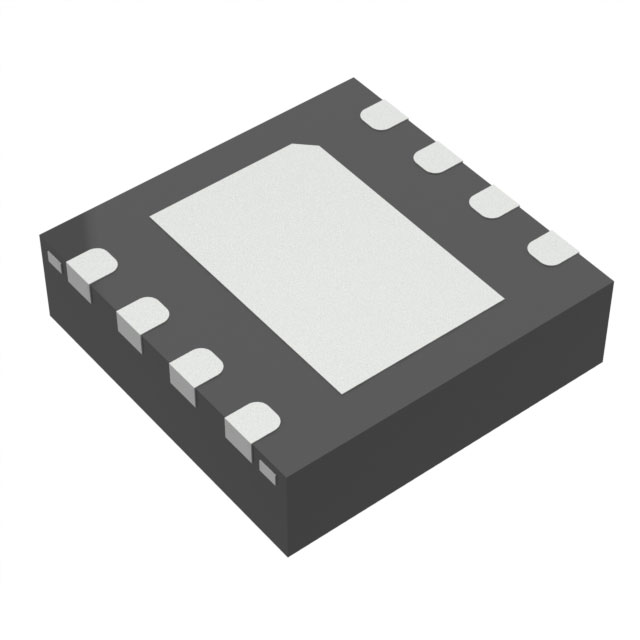

ISL89166FRTAZ

Obsolete

Intersil

AND GATE BASED MOSFET DRIVER

Search across all available documentation for this part.

Obsolete

Intersil

AND GATE BASED MOSFET DRIVER

Technical Specifications

Parameters and characteristics for this part

Specification	ISL89166FRTAZ

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	6 A
Current - Peak Output (Source, Sink) [custom]	6 A
Driven Configuration	Low-Side
Gate Type	N-Channel MOSFET
Input Type	Non-Inverting
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	8-WDFN Exposed Pad
Rise / Fall Time (Typ) [custom]	20 ns
Rise / Fall Time (Typ) [custom]	20 ns
Supplier Device Package	8-TDFN (3x3)
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	4.5 V

Part	Mounting Type	Channel Type	Input Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Supplier Device Package	Number of Drivers	Operating Temperature [Min]	Operating Temperature [Max]	Gate Type	Driven Configuration	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
Intersil ISL89166FRTAZ	Surface Mount	Independent	Non-Inverting	6 A	6 A	8-TDFN (3x3)	2	-40 °C	125 ¯C	N-Channel MOSFET	Low-Side	8-WDFN Exposed Pad	4.5 V	16 V	20 ns	20 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	86	$ 3.53

General part information

Low-Side Gate Driver IC Non-Inverting 8-TDFN (3x3)
