10063545-400HLF

Active

Amphenol ICC (FCI)

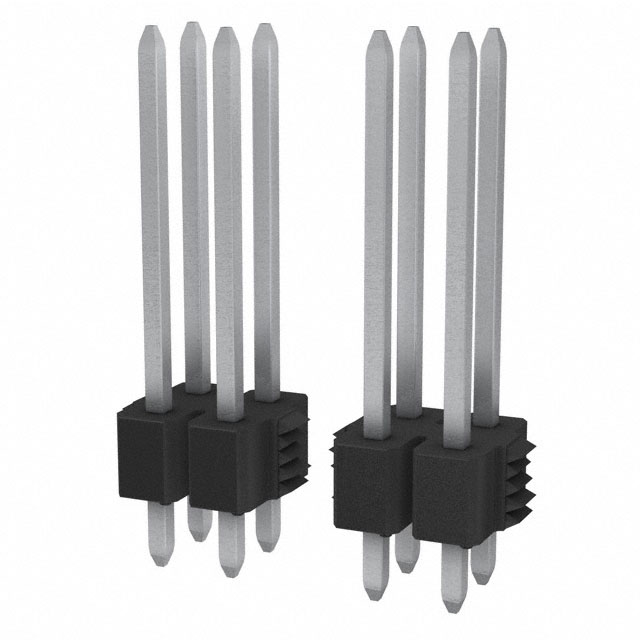

CONN HEADER VERT 20000POS 2.54MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER VERT 20000POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	10063545-400HLF

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating	0.455 in
Contact Length - Mating	11.56 mm
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	Cuttable
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length [x]	0.646 in
Overall Contact Length [x]	16.4 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Current Rating (Amps)	Material Flammability Rating	Contact Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Rows	Contact Shape	Pitch - Mating	Pitch - Mating	Fastening Type	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions
Amphenol ICC (FCI) 10063545-440HT	-65 ░C	130 °C	Unshrouded	0.938 in	23.83 mm	0.12 in	3.05 mm	Male Pin	3 A	UL94 V-0	Brass	Breakaway Header	2.54 mm	0.1 in	40	0.718 "	18.24 mm	Black	All	120 µin	3.05 Ám	Solder	2	Square	0.1 in	2.54 mm	Push-Pull	Through Hole	0.1 in	2.54 mm
Amphenol ICC (FCI) 10063545-400HLF	-65 ░C	130 °C	Unshrouded					Male Pin	3 A	UL94 V-0	Brass	Breakaway Header	2.54 mm	0.1 in		0.455 in	11.56 mm	Black	All	100 çin	2.54 çm	Solder	2	Square	0.1 in	2.54 mm	Push-Pull	Through Hole	0.1 in	2.54 mm	0.091 in	2.3 mm	Tin	0.646 in	16.4 mm	Cuttable
