C3AEG-2006M

Active

CW Industries

IDC CABLE - CSC20G/AE20M/CCE20G

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide

C3AEG-2006M

Active

CW Industries

IDC CABLE - CSC20G/AE20M/CCE20G

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3AEG-2006M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Card Edge
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

C3AEG-2 Series

Part	Number of Rows	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish	Number of Positions	Pitch - Cable	Pitch - Cable	Connector Type	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Shielding	Color	Length	Length	Length
CW Industries C3AEG-2018M	2	0.1 in	2.54 mm	IDC	Gold	20	0.05 "	1.27 mm	Socket to Card Edge	457.2 mm	1.5 ft	10 Áin	0.25 Ám	Unshielded	Multiple Ribbon
CW Industries C3AEG-2006M	2	0.1 in	2.54 mm	IDC	Gold	20	0.05 "	1.27 mm	Socket to Card Edge			10 Áin	0.25 Ám	Unshielded	Multiple Ribbon	152.4 mm	6 "	0.5 '
CW Industries C3AEG-2636M	2	0.1 in	2.54 mm	IDC	Gold	26	0.05 "	1.27 mm	Socket to Card Edge	914.4 mm	3 ft	10 Áin	0.25 Ám	Unshielded	Multiple Ribbon
CW Industries C3AEG-2618M	2	0.1 in	2.54 mm	IDC	Gold	26	0.05 "	1.27 mm	Socket to Card Edge	457.2 mm	1.5 ft	10 Áin	0.25 Ám	Unshielded	Multiple Ribbon
CW Industries C3AEG-2606M	2	0.1 in	2.54 mm	IDC	Gold	26	0.05 "	1.27 mm	Socket to Card Edge			10 Áin	0.25 Ám	Unshielded	Multiple Ribbon	152.4 mm	6 "	0.5 '
CW Industries C3AEG-2018G	2	0.1 in	2.54 mm	IDC	Gold	20	0.05 "	1.27 mm	Socket to Card Edge	457.2 mm	1.5 ft	10 Áin	0.25 Ám	Unshielded
CW Industries C3AEG-2606G	2	0.1 in	2.54 mm	IDC	Gold	26	0.05 "	1.27 mm	Socket to Card Edge			10 Áin	0.25 Ám	Unshielded		152.4 mm	6 "	0.5 '
CW Industries C3AEG-2036G	2	0.1 in	2.54 mm	IDC	Gold	20	0.05 "	1.27 mm	Socket to Card Edge	914.4 mm	3 ft	10 Áin	0.25 Ám	Unshielded
CW Industries C3AEG-2618G	2	0.1 in	2.54 mm	IDC	Gold	26	0.05 "	1.27 mm	Socket to Card Edge	457.2 mm	1.5 ft	10 Áin	0.25 Ám	Unshielded
CW Industries C3AEG-2036M	2	0.1 in	2.54 mm	IDC	Gold	20	0.05 "	1.27 mm	Socket to Card Edge	914.4 mm	3 ft	10 Áin	0.25 Ám	Unshielded	Multiple Ribbon

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.06
		10	$ 11.58
		25	$ 10.47
		50	$ 9.72
		100	$ 9.04
		250	$ 8.24
		500	$ 7.69
		1000	$ 7.21

Description

General part information

C3AEG-2 Series

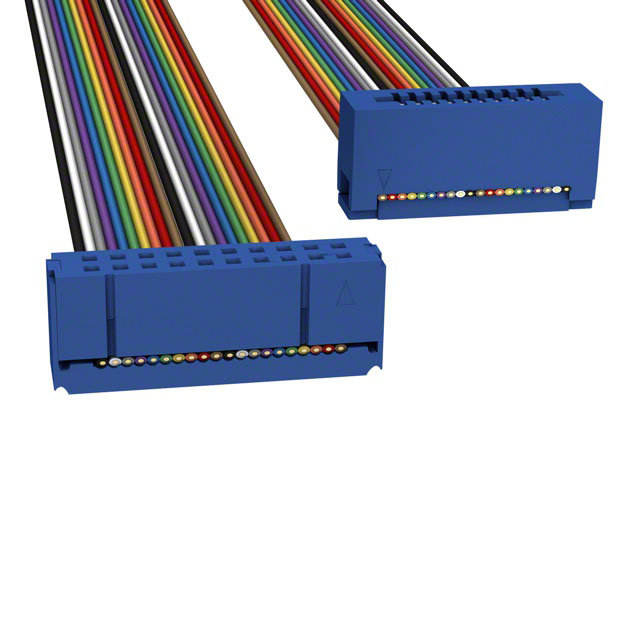

20 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet
