LHD-08-TRB

Active

Adam Tech

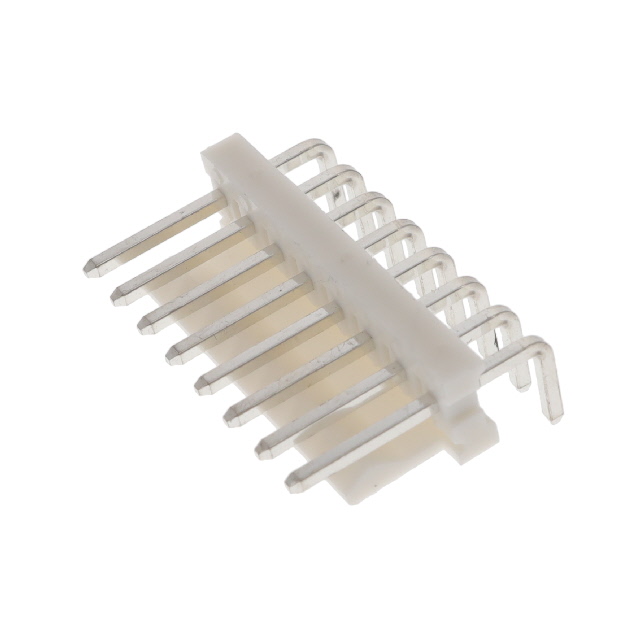

CONN HEADER R/A 8POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 8POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHD-08-TRB

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [custom]	11.4 mm
Contact Length - Mating [custom]	0.449 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Termination	Insulation Color	Contact Type	Connector Type	Current Rating (Amps)	Shrouding	Number of Positions Loaded	Contact Material	Number of Rows	Style	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Mounting Type	Contact Shape	Insulation Height [z]	Insulation Height [z]	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Number of Positions	Material Flammability Rating	Fastening Type	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post
Adam Tech LHD-08-TRB	Solder	White	Male Pin	Header	7 A	Shrouded - 1 Wall	All	Brass	1	Board to Cable/Wire	11.4 mm	0.449 in	Through Hole Right Angle	Square	0.3 in	7.62 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	85 °C	-40 °C	0.156 in	3.96 mm	8	UL94 V-2	Friction Lock	3.2 mm	0.126 in	Tin
Adam Tech LHD-08-TRA	Solder	White	Male Pin	Header	7 A	Shrouded - 1 Wall	All	Brass	1	Board to Cable/Wire	11.4 mm	0.449 in	Through Hole Right Angle	Square	0.3 in	7.62 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	85 °C	-40 °C	0.156 in	3.96 mm	8	UL94 V-2	Friction Lock	3.2 mm	0.126 in
Adam Tech LHD-08-TS	Solder	White	Male Pin	Header	7 A	Shrouded - 1 Wall	All	Brass	1	Board to Cable/Wire			Through Hole	Square			Polyamide (PA66) Nylon 6/6	105 ░C	-40 °C	0.156 in	3.96 mm	8	UL94 V-2	Friction Lock	3.6 mm		Tin	0.448 in	11.38 mm	0.425 in	10.8 mm	0.715 "	18.16 mm	0.142 in
