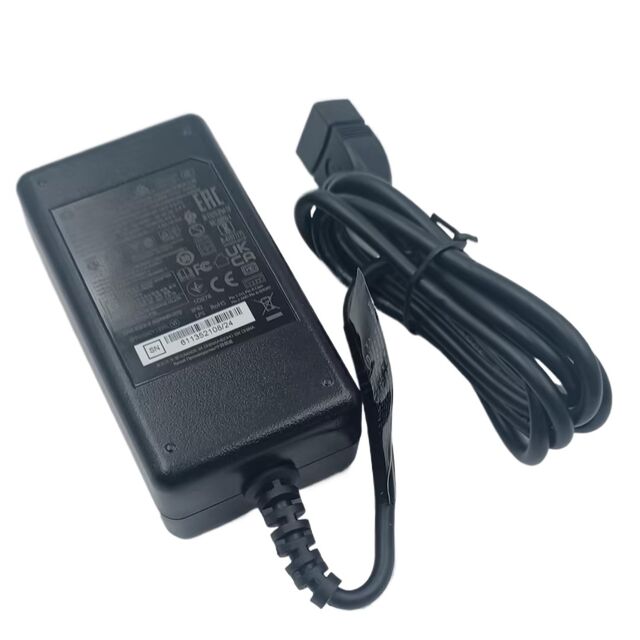

TR9CA3600USBA-IMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 5V 18W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR9CA3600USBA-IMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 5V 18W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CA3600USBA-IMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, ETL, UL, CCC, cULus, NOM, FCC, BSMI, UKRSepro, LPS, cETLus, PSE, VCCI, CB, RCM, S-Mark, EAC
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	3.6 A
Efficiency	Level VI, CoC Tier 1
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	87 mm
Size / Dimension [x]	3.43 in
Size / Dimension [y]	1.83 in
Size / Dimension [y]	46.5 mm
Size / Dimension [z]	1.26 in
Size / Dimension [z]	32 mm
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

TR9CA3600 Series

Part	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	No Load Power Consumption [Max]	Standard Number	Cord Length	Cord Length	Form	Applications	Input Type	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Current - Output (Max) [Max]	Cord Length	Output Connector	Polarization	Output Connector [diameter]	Output Connector [x]
GlobTek, Inc. TR9CA3600USBA-IMR6B	5 V	-20 C	40 °C	IEC 320-C14	CoC Tier 1 Level VI	90 VAC	264 VAC	18 W	75 mW	60335-1 60601-1 60950-1 62368-1	1 m	39.4 "	Desktop (Class I)	Household Appliances ITE (Commercial) Medical	Cord	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	1.83 in	1.26 in	32 mm	87 mm	46.5 mm	3.43 in	International	3.6 A
GlobTek, Inc. TR9CA3600T00-IMR6B	5 V	-20 C	40 °C	IEC 320-C14	Level VI	90 VAC	264 VAC	18 W	75 mW	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	47.2 in		Desktop (Class I)	Household Appliances ITE (Commercial) Medical	Cord	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	1.85 "	1.26 in	32 mm	87 mm	47 mm	3.43 in	International	3.6 A	1.2 m	1.3mm x 3.5mm Barrel Plug Kit
GlobTek, Inc. TR9CA3600USBC-IMR6B	5 V	-20 C	40 °C	IEC 320-C14	Level VI	90 VAC	264 VAC	18 W	75 mW	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	47.2 in		Desktop (Class I)	Household Appliances ITE (Commercial) Medical	Cord	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	1.85 "	1.26 in	32 mm	87 mm	47 mm	3.43 in	International	3.6 A	1.2 m	USB C
GlobTek, Inc. TR9CA3600LCP-IMR6B	5 V	-20 C	40 °C	IEC 320-C14	Level VI	90 VAC	264 VAC	18 W	75 mW	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	47.2 in		Desktop (Class I)	Household Appliances ITE (Commercial) Medical	Cord	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	1.85 "	1.26 in	32 mm	87 mm	47 mm	3.43 in	International	3.6 A	1.2 m	Barrel Plug	Positive Center	2.5 mm 5.5 mm	11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.83
		5	$ 15.40
		10	$ 14.54
		25	$ 13.69
		60	$ 12.83
		120	$ 11.98
		300	$ 11.55
		540	$ 11.38

Description

General part information

TR9CA3600 Series

5V 18 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
