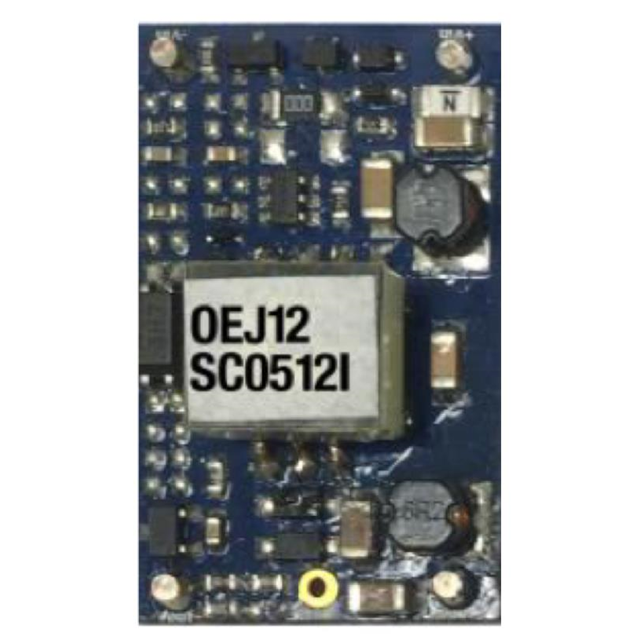

OEJ12SC0512I
ActiveETA-USA
DC DC CONVERTER 12V 1.56W
Deep-Dive with AI
Search across all available documentation for this part.
OEJ12SC0512I
ActiveETA-USA
DC DC CONVERTER 12V 1.56W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OEJ12SC0512I |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 130 mA |
| Efficiency | 83 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 1.56 W |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [z] | 10 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.00 | |
| 20 | $ 22.10 | |||
Description
General part information
OEJ12SC0512 Series
Isolated Module DC DC Converter 1 Output 12V 130mA 4.5V - 16V Input
