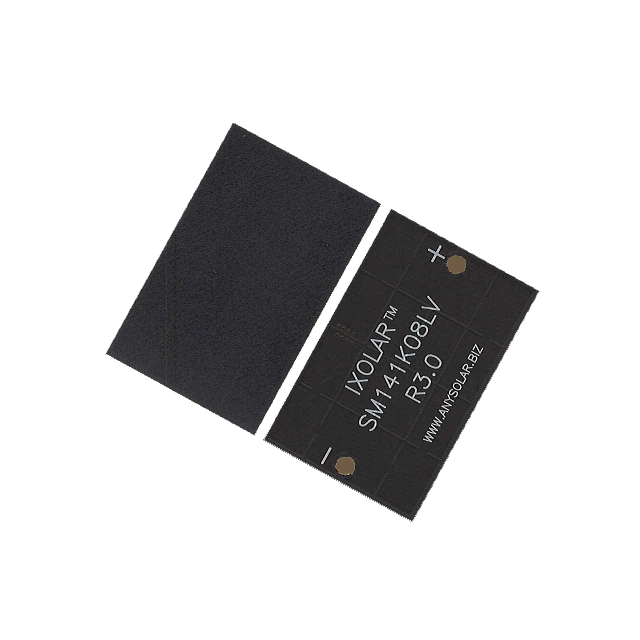

SM141K08LV
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 246MW 5.53V
Deep-Dive with AI
Search across all available documentation for this part.
SM141K08LV
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 246MW 5.53V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM141K08LV |
|---|---|
| Current - Short Circuit (Isc) | 58.6 mA |
| Current @ Pmpp | 55.1 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 246 mW |
| Size / Dimension [x] | 45 mm |
| Size / Dimension [x] | 1.772 in |
| Size / Dimension [y] | 29 mm |
| Size / Dimension [y] | 1.142 in |
| Size / Dimension [z] | 2.1 mm |
| Size / Dimension [z] | 0.083 in |
| Type | Monocrystalline |
| Voltage - Open Circuit | 5.53 V |
| Voltage @ Pmpp [custom] | 4.46 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.98 | |
| 25 | $ 6.33 | |||
| 50 | $ 6.01 | |||
| 100 | $ 5.74 | |||
| 250 | $ 5.38 | |||
| 500 | $ 5.11 | |||
Description
General part information
SM141K08 Series
Monocrystalline Solar Cell 246 mW 5.53 V
Documents
Technical documentation and resources
No documents available
