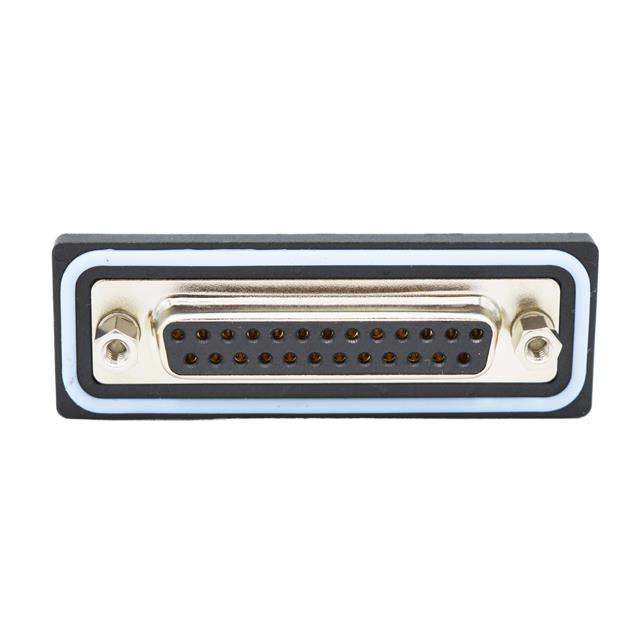

SDF-R25-213L011

Active

MH Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDF-R25-213L011

Active

MH Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-R25-213L011

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

SDF-R25 Series

Part	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish	Contact Type	Connector Type	Contact Material	Number of Rows	Material Flammability Rating	Shell Material, Finish	Flange Feature	Mounting Type	Features	Current Rating (Amps)	Termination	Contact Finish Thickness	Connector Style	Contact Finish Thickness	Contact Finish Thickness
MH Connectors SDF-R25-113L011	Polybutylene Terephthalate (PBT)	B DB	3	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Black	Gold	Signal	Male Pins Plug	Brass	2	UL94 V-0	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Grounding Indents	5 A	Solder	Flash	D-Sub
MH Connectors SDF-R25-113L461	Polybutylene Terephthalate (PBT)	B DB	3	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Black	Gold	Signal	Male Pins Plug	Brass	2	UL94 V-0	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	5 A	Solder	Flash	D-Sub
MH Connectors SDF-R25-213L011	Polybutylene Terephthalate (PBT)	B DB	3	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Black	Gold	Signal	Receptacle Female Sockets	Brass	2	UL94 V-0	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole		5 A	Solder	Flash	D-Sub
MH Connectors SDF-R25-213L012	Polybutylene Terephthalate (PBT)	B DB	3	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Black	Gold	Signal	Receptacle Female Sockets	Brass	2	UL94 V-0	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole		5 A	Solder		D-Sub	0.76 Ám	30 Áin
MH Connectors SDF-R25-113L012	Polybutylene Terephthalate (PBT)	B DB	3	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Black	Gold	Signal	Male Pins Plug	Brass	2	UL94 V-0	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Grounding Indents	5 A	Solder		D-Sub	0.76 Ám	30 Áin
MH Connectors SDF-R25-213L462	Polybutylene Terephthalate (PBT)	B DB	3	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Black	Gold	Signal	Receptacle Female Sockets	Brass	2	UL94 V-0	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Board Lock Mounting Brackets	5 A	Solder		D-Sub	0.76 Ám	30 Áin
MH Connectors SDF-R25-113L462	Polybutylene Terephthalate (PBT)	B DB	3	IP67 - Dust Tight Waterproof	-25 °C	85 °C	Black	Gold	Signal	Male Pins Plug	Brass	2	UL94 V-0	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	5 A	Solder		D-Sub	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.04
		10	$ 13.88
		25	$ 12.56
		40	$ 11.94
		80	$ 11.10
		230	$ 9.97
		440	$ 9.36
		945	$ 8.71

Description

General part information

SDF-R25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
