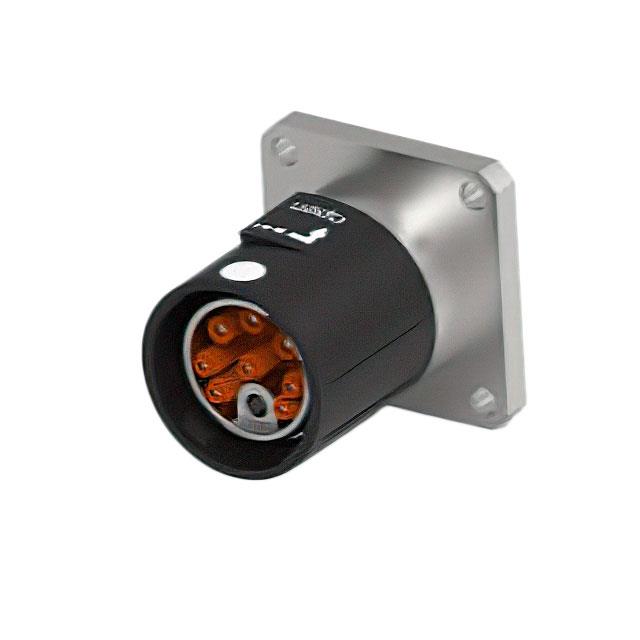

EDA202N00000501000

Active

TE Intercontec

CONN PLG HSG FMALE 9POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 9POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	EDA202N00000501000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Coupling Nut
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	5
Number of Positions [custom]	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Unshielded
Type	For Female Sockets

Part	Insert Material	Housing Color	Features	Shell Material	Type	Includes	Shielding	Orientation	Mounting Feature	Note	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Ingress Protection	Shell Finish	Fastening Type
TE Intercontec EDA202N00000501000	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Silver	Coupling Nut	Zinc Die Cast	For Female Sockets	1 Connector 1 O-Ring	Unshielded	Keyed	Flange	Contacts Not Included	PE	3	5	9	Circular	-20 C	130 °C	UL94 V-0	Plug Housing	IP66/IP67	Nickel	Push-Twist

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 (5 + 3 Power + PE) Position Circular Connector Plug Housing Panel Mount Coupling Nut
