MNG10-8RX-BOTTLE

Active

3M (TC)

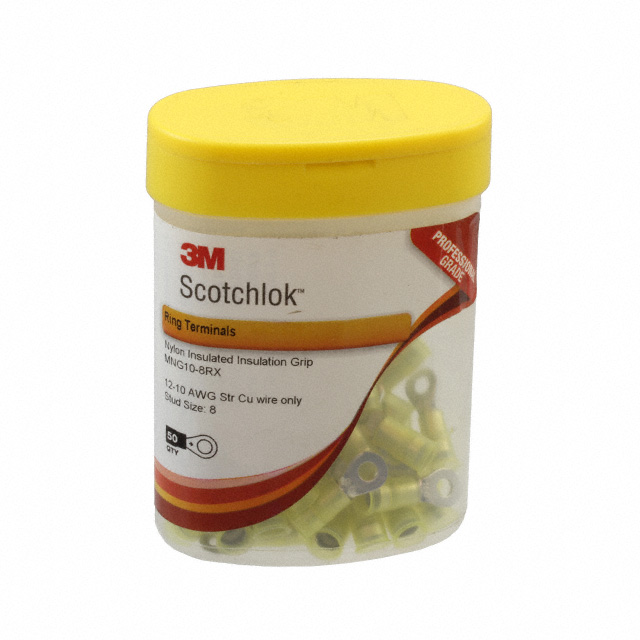

CONN RING CIRC 10-12AWG #8 50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MNG10-8RX-BOTTLE

Active

3M (TC)

CONN RING CIRC 10-12AWG #8 50PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MNG10-8RX-BOTTLE

Color	Yellow
Contact Finish	Tin
Contact Material	ETP, Copper
Insulation	Insulated
Insulation Diameter	0.25 "
Insulation Diameter	6.35 mm
Length - Overall	26.16 mm
Length - Overall [x]	1.03 in
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.04 in
Thickness	1.02 mm
Width - Outer Edges [x]	9.65 mm
Width - Outer Edges [x]	0.38 "
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

MNG10 Series

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Mounting Type	Length - Overall [x]	Length - Overall	Stud/Tab Size	Color	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Insulation Diameter	Material - Insulation	Length - Ring Center to Termination	Length - Ring Center to Termination	Contact Finish	Terminal Type	Contact Material	Termination	Length - Termination	Length - Termination	Insulation	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Number of Wire Entries	Stud/Tab Size	Length - Overall [x]	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges [x]	Width - Outer Edges [x]
3M (TC) MNG10-8FBK	8.13 mm	0.32 in	Free Hanging (In-Line)	1.03 in	26.16 mm	8 Stud	Yellow	12 AWG	10 AWG	0.25 "	6.35 mm	Nylon Polyamide (PA)	0.29 in	7.37 mm	Tin	Standard	Copper ETP	Crimp	13.97 mm	0.55 in	Insulated
3M (TC) MNG10-250DMK			Free Hanging (In-Line)	1.05 in	26.67 mm		Yellow	12 AWG	10 AWG	0.25 "	6.35 mm				Tin	Standard	Copper ETP	Crimp			Non-Mating End Insulated	6.35 mm	0.25 in	Male	0.032 in	0.81 mm
3M (TC) MNG10BCX-BOTTLE							Yellow	12 AWG	10 AWG							Butt Splice Individual Openings Inline		Crimp			Fully Insulated						2
3M (TC) MNG10-8FFBX-BOTTLE	8.13 mm	0.32 in	Free Hanging (In-Line)	1.03 in	26.16 mm	8 Stud	Yellow	12 AWG	10 AWG	0.25 "	6.35 mm	Nylon Polyamide (PA)	0.29 in	7.37 mm	Tin	Flanged	Copper ETP	Crimp	13.97 mm	0.55 in	Insulated
3M (TC) MNG10-10FLK	8.13 mm	0.32 in	Free Hanging (In-Line)	1.03 in	26.16 mm		Yellow	12 AWG	10 AWG	0.25 "	6.35 mm	Nylon Polyamide (PA)	0.28 in	7.11 mm	Tin	Snap Spring	Copper ETP	Crimp	13.97 mm	0.55 in	Insulated							10 Stud
3M (TC) MNG10BCMK							Yellow	12 AWG	10 AWG							Butt Splice Individual Openings Inline		Crimp			Fully Insulated						2
3M (TC) MNG10-14R/SK		0.53 in	Free Hanging (In-Line)	1.26 in			Yellow	12 AWG	10 AWG	0.25 "	6.35 mm	Nylon Polyamide (PA)			Tin	Circular	Copper ETP	Crimp			Insulated							0.25 Stud	32 mm	0.04 in	1.02 mm	13.46 mm
3M (TC) MNG10-10FFBK	8.13 mm	0.32 in	Free Hanging (In-Line)	1.03 in	26.16 mm		Yellow	12 AWG	10 AWG	0.25 "	6.35 mm	Nylon Polyamide (PA)	0.29 in	7.37 mm	Tin	Flanged	Copper ETP	Crimp	13.97 mm	0.55 in	Insulated							10 Stud
3M (TC) MNG10-8RX-BOTTLE			Free Hanging (In-Line)	1.03 in	26.16 mm	8 Stud	Yellow	12 AWG	10 AWG	0.25 "	6.35 mm	Nylon Polyamide (PA)			Tin	Circular	Copper ETP	Crimp			Insulated									0.04 in	1.02 mm		9.65 mm	0.38 "
3M (TC) MNG10-38R/SK	13.72 mm	0.54 in	Free Hanging (In-Line)	1.26 in		3/8 Stud	Yellow	12 AWG	10 AWG	0.25 "	6.35 mm	Nylon Polyamide (PA)			Tin	Circular	Copper ETP	Crimp			Insulated								32 mm	0.04 in	1.02 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.77

Description

General part information

MNG10 Series

Ring Terminal Connector 8 Stud Circular 10-12 AWG Crimp
