UTG1103P

Active

Souriau-Sunbank by Eaton

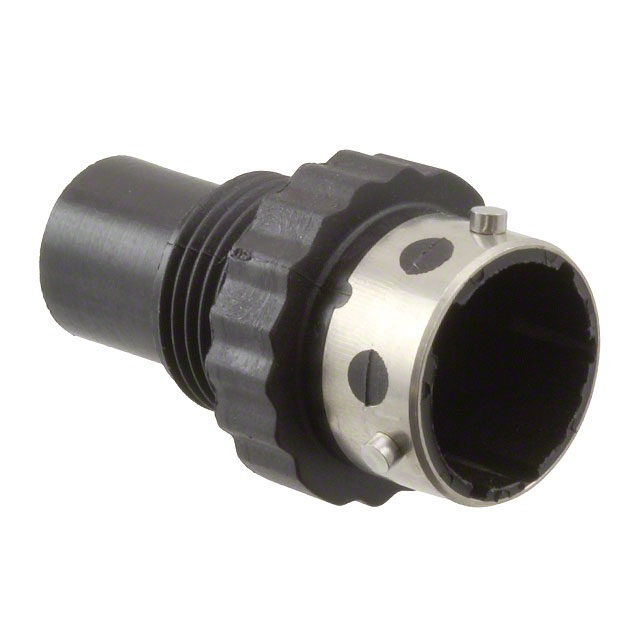

CONN RCPT HSG MALE 3POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UTG1103P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG MALE 3POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTG1103P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black, Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	2
Number of Positions [custom]	3
Number of Positions [custom]	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Size - Insert	10-3
Shielding	Unshielded
Type	For Male Pins

UTG11 Series

Part	Ingress Protection	Fastening Type	Housing Color	Note	Shielding	Contact Type	Type	Shell Size - Insert	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Size	Orientation	Insert Material	Mounting Type	Number of Positions	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Souriau-Sunbank by Eaton UTG11412PH	IP65 - Dust Tight Water Resistant	Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Male Pins	14-12	Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)	12	UL94 V-0
Souriau-Sunbank by Eaton UTG1128P		Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Male Pins	12-8	Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)	8	UL94 V-0
Souriau-Sunbank by Eaton UTG1103P		Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Male Pins	10-3	Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)		UL94 V-0	2	3	1
Souriau-Sunbank by Eaton UTG1104P		Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Male Pins	10-4	Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)	4	UL94 V-0
Souriau-Sunbank by Eaton UTG1128PH	IP65 - Dust Tight Water Resistant	Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Male Pins	12-8	Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)	8	UL94 V-0
Souriau-Sunbank by Eaton UTG1104S		Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Female Sockets	10-4	Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)	4	UL94 V-0
Souriau-Sunbank by Eaton UTG1104PH	IP65 - Dust Tight Water Resistant	Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Male Pins	10-4	Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)	4	UL94 V-0
Souriau-Sunbank by Eaton UTG1103S		Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Female Sockets	10-3	Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)		UL94 V-0	2	3	1
Souriau-Sunbank by Eaton UTG11619PH	IP65 - Dust Tight Water Resistant	Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Male Pins		Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)	19	UL94 V-0				16	19
Souriau-Sunbank by Eaton UTG1104SH	IP65 - Dust Tight Water Resistant	Bayonet Lock	Black Silver	Contacts Not Included	Unshielded	Crimp	For Female Sockets	10-4	Receptacle Housing	-55 °C	125 °C	Circular	16	N	Thermoplastic Glass Filled	Free Hanging (In-Line)	4	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.47
		50	$ 8.25
		125	$ 8.03
		250	$ 7.17
		625	$ 6.73
		1250	$ 5.95

Description

General part information

UTG11 Series

3 (2 + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line)
