Q-090090008009i

Active

Amphenol Custom Cable

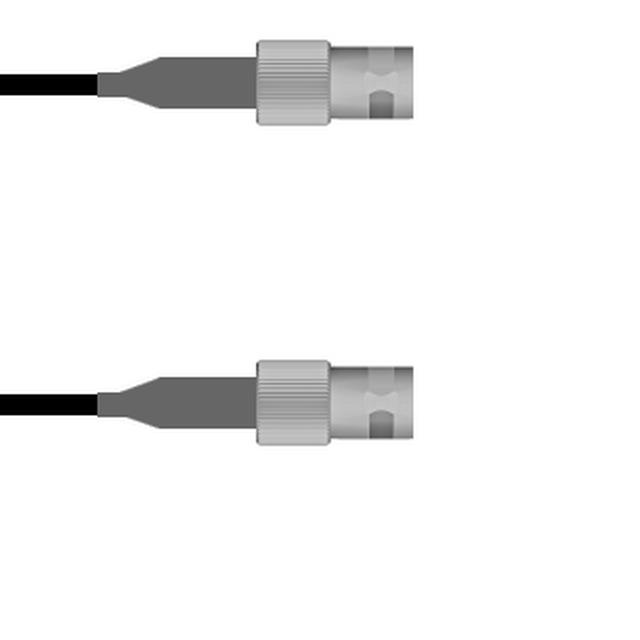

CBL ASSY BNC JACK TO JACK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-090090008009i

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO JACK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-090090008009i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-090090 Series

Part	2nd Contact Gender	Length	Length	Length	1st Connector	1st Contact Gender	Cable Type	Overall Impedance	1st Connector Mounting Type	Features	2nd Connector Mounting Type	Frequency - Max [Max]	Color	Style	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-090090008108i	Female	2.7 m	9 ft	108 in	BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack
Amphenol Custom Cable Q-090090008001M	Female	1 m	3.3 ft	39.4 in	BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack
Amphenol Custom Cable Q-090090008018i	Female				BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack	457.2 mm	457.2 mm
Amphenol Custom Cable Q-090090008036i	Female	91.44 cm		36 in	BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack
Amphenol Custom Cable Q-090090008009i	Female	228.6 mm		9 "	BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack
Amphenol Custom Cable Q-090090008002M	Female	2 m	6.6 ft	78.7 in	BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack
Amphenol Custom Cable Q-090090008048i	Female	1200 mm	4 ft	48 in	BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack
Amphenol Custom Cable Q-090090008024i	Female	609.6 mm		24 "	BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack
Amphenol Custom Cable Q-090090008072i	Female	1.8 m	6 ft	72 in	BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack
Amphenol Custom Cable Q-0900900082.5M	Female	2.5 m	8.2 '	98.4 in	BNC Jack	Female	RG-58	50 Ohms	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	4 GHz	Black	BNC to BNC	BNC Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 60.94
		25	$ 59.75
		50	$ 58.55
		100	$ 57.36
		250	$ 56.17

Description

General part information

Q-090090 Series

Cable Assembly Coaxial BNC to BNC RG-58 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
