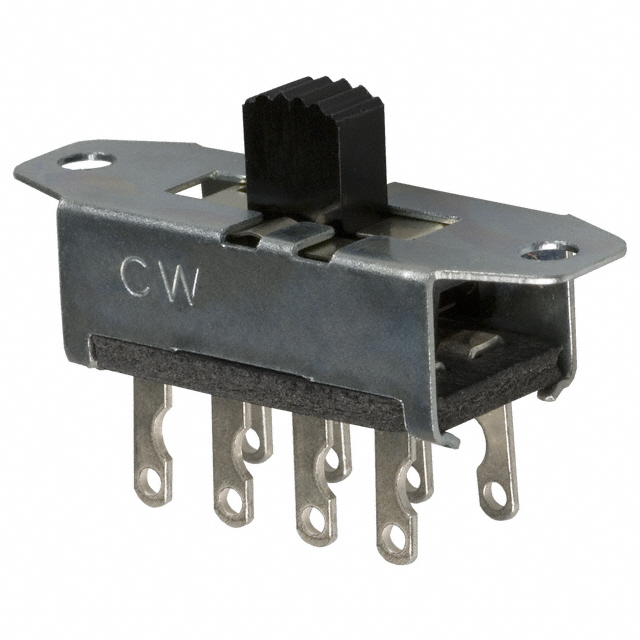

G-128S-3011

Active

CW Industries

SWITCH SLIDE DP3T 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Mini Switches Catalog

G-128S-3011

Active

CW Industries

SWITCH SLIDE DP3T 3A 125V

Deep-Dive with AI

DocumentsDatasheet Mini Switches Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G-128S-3011

Actuator Length [x]	5.08 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Type	Standard
Circuit	DP3T
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Non-Shorting
Current Rating (Amps)	500 mA, 3 A
Electrical Life	6000 Cycles
Mechanical Life	10000 Steps
Operating Temperature [Max]	104 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On-On
Switch Travel	3.94 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

G-128S Series

Part	Switch Travel	Current Rating (Amps)	Termination Style	Contact Finish	Actuator Length [x]	Contact Material	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Type	Contact Timing	Electrical Life	Voltage Rating - DC	Switch Function	Actuator Material	Mechanical Life	Mounting Type
CW Industries G-128S-0142	3.94 mm	500 mA	PC Pin	Silver	8.33 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Not Specified	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps
CW Industries G-128S-0119	3.94 mm	3 A 500 mA	PC Pin	Silver	5.08 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Not Specified	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps
CW Industries G-128S-0016	3.94 mm	500 mA	PC Pin	Silver	8.33 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Not Specified	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps
CW Industries G-128S-0000	3.94 mm	500 mA	Solder Lug	Silver	5.08 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Not Specified	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps
CW Industries G-128S-0109	3.94 mm	500 mA	PC Pin	Silver	5.08 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Not Specified	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps	Through Hole
CW Industries G-128S-3011	3.94 mm	3 A 500 mA	Solder Lug	Silver	5.08 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Non-Shorting	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps
CW Industries G-128S-0012	3.94 mm	500 mA	PC Pin	Silver	5.08 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Not Specified	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps	Through Hole
CW Industries G-128S-0147	3.94 mm	3 A 500 mA	PC Pin	Silver	3.18 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Not Specified	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps	Through Hole
CW Industries G-128S-0150	3.94 mm	6 A 500 mA	PC Pin	Silver	5.08 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Not Specified	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps
CW Industries G-128S-0051	3.94 mm	500 mA	PC Pin	Silver	11.5 mm	Copper	125 V	104 °C	-10 °C	DP3T	Standard	Not Specified	6000 Cycles	125 VDC	On-On-On	Nylon 6/6 Polyamide (PA66)	10000 Steps	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.17
		10	$ 1.14
		25	$ 1.04
		100	$ 0.90
		250	$ 0.82

Description

General part information

G-128S Series

Slide Switch DP3T Panel Mount

Documents

Technical documentation and resources

Datasheet

Mini Switches Catalog

Datasheet
