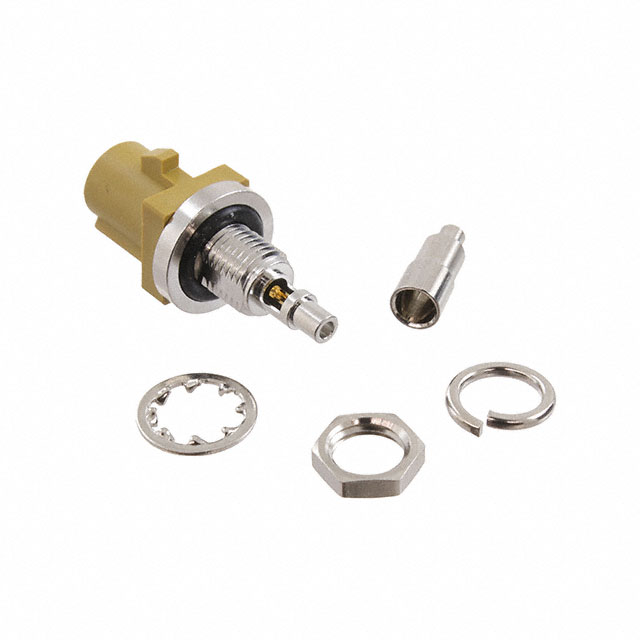

RF55-26K-T-09-50-A-SH
ActiveAdam Tech
FAKRA PLUG SMA TYPE: STRAIGHT, B
Deep-Dive with AI
Search across all available documentation for this part.
RF55-26K-T-09-50-A-SH
ActiveAdam Tech
FAKRA PLUG SMA TYPE: STRAIGHT, B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF55-26K-T-09-50-A-SH |
|---|---|
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | Fakra, SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code K |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Curry |
| Impedance | 50 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.40 | |
| 10 | $ 6.03 | |||
| 25 | $ 5.56 | |||
Description
General part information
RF55-26 Series
SMA, Fakra Connector Plug, Male Pin 50 Ohms Panel Mount Crimp
