09150043001

Active

HARTING Technology Group

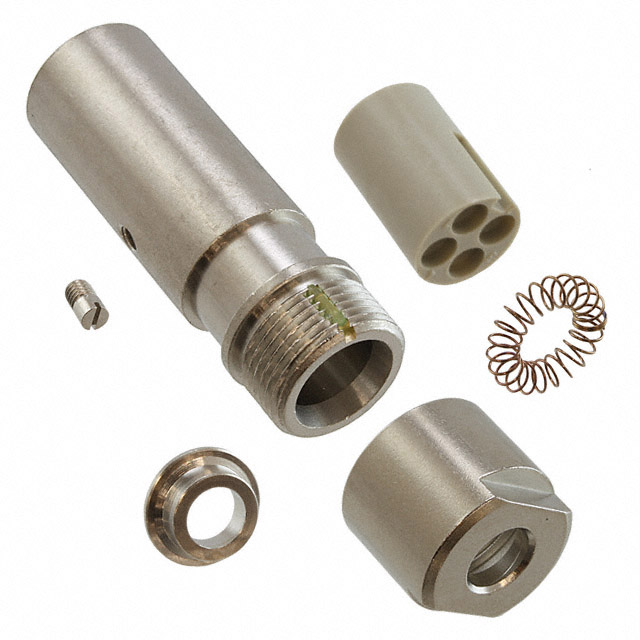

HAN 4 QUINTAX MALE CRIMP TERM. 3-6 MM ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 4 QUINTAX MALE CRIMP TERM. 3-6 MM ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Number of Positions	Current Rating (Amps)	Voltage Rating	Termination Style	Material Flammability Rating	Housing Material	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 09150043112	Female
HARTING Technology Group 09150043012	Male	4
HARTING Technology Group 09150043113	Female	4	10 A	50 V	Crimp	UL94 V-0	Polycarbonate (PC)	Insert without Contacts	Han® D	85 °C	-40 °C
HARTING Technology Group 09150043114	Female
HARTING Technology Group 09150043013	Male	4	10 A	50 V	Crimp	UL94 V-0	Polycarbonate (PC)	Insert without Contacts	Han® D	85 °C	-40 °C
HARTING Technology Group 09150043014	Male
HARTING Technology Group 09150043001	Male	4			Crimp			Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts 4 Position Crimp
