010256CD112

Active

Essentra Access Solutions

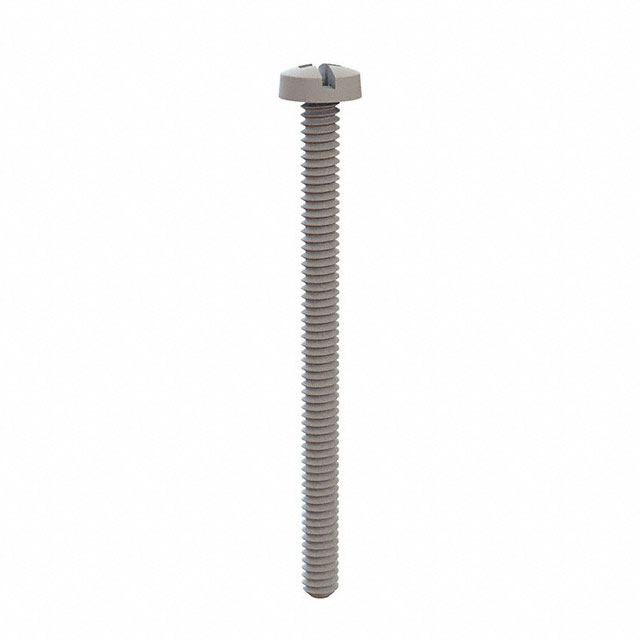

MACH SCREW BINDING COMBO #2-56

Search across all available documentation for this part.

Active

Essentra Access Solutions

MACH SCREW BINDING COMBO #2-56

Technical Specifications

Parameters and characteristics for this part

Part	Thread Size	Head Height [z]	Head Height [z]	Drive Type	Length - Overall [x]	Length - Overall [x]	Material	Type	Screw Head Type	Length - Below Head	Length - Below Head	Length - Below Head	Head Diameter [diameter]	Head Diameter [diameter]	Length - Below Head [x]	Length - Below Head [x]	Length - Overall	Length - Overall
Essentra Access Solutions 010256CD015	#2-56	3.51 mm	0.138 in	Combination	7.47 mm	0.294 "	Nylon	Machine Screw	Binding Head	3.96 mm	0.15625 in	0.156 in	0.176 "	4.47 mm
Essentra Access Solutions 010256CD112	#2-56	3.51 mm	0.138 in	Combination			Nylon	Machine Screw	Binding Head				0.176 "	4.47 mm	28.58 mm	1.125 in
Essentra Access Solutions 010256CD009	#2-56			Combination			Nylon	Machine Screw	Binding Head								0.232 in	5.89 mm
Essentra Access Solutions 010256CD018	#2-56			Combination	8.28 mm	0.326 in	Nylon	Machine Screw	Binding Head						4.78 mm	0.188 in
Essentra Access Solutions 010256CD031	#2-56	3.51 mm	0.138 in	Combination			Nylon	Machine Screw	Binding Head				0.176 "	4.47 mm	7.95 mm	0.313 in	0.451 in	11.46 mm
Essentra Access Solutions 010256CD037	#2-56			Combination	13.03 mm	0.513 in	Nylon	Machine Screw	Binding Head	0.375 "	9.53 mm	0.375 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.06

General part information

#2-56 Binding Head Machine Screw Combination Drive Nylon

Technical documentation and resources

No documents available
