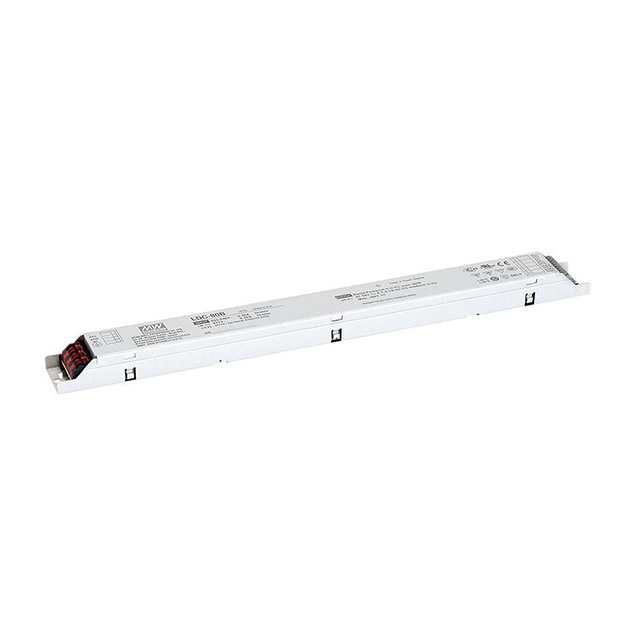

LDC-80B
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 27-56V 2.1A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDC-80B
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 27-56V 2.1A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDC-80B |
|---|---|
| Approval Agency | CE, cURus, CB, CCC |
| Current - Output (Max) [Max] | 2.1 A |
| Dimming | Analog, PWM |
| Efficiency | 90 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 80 W |
| Size / Dimension [x] | 14.17 in |
| Size / Dimension [x] | 360 mm |
| Size / Dimension [y] | 1.18 in |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [z] | 0.83 in |
| Size / Dimension [z] | 21 mm |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 295 VAC |
| Voltage - Input (Min) [Min] | 180 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 56 V |
| Voltage - Output [Min] | 27 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 36.84 | |
| 5 | $ 34.16 | |||
| 10 | $ 33.06 | |||
| 25 | $ 31.67 | |||
Description
General part information
LDC-80 Series
2.1A 27 ~ 56V Constant Current LED Driver AC DC Converter Topology 1 Output
