131,GY

Active

Serpac

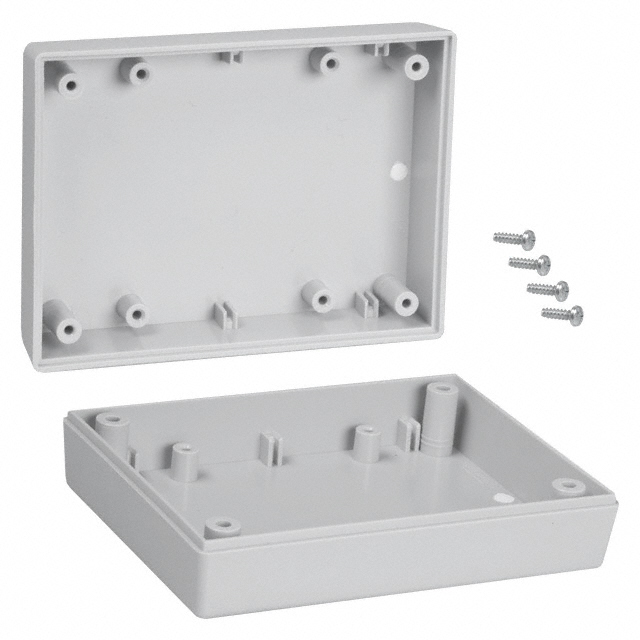

BOX ABS GRAY 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	131,GY

Area (L x W)	92 cm˛
Area (L x W)	14.2 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.19 lb
Weight	86.18 g

Part	Features	Thickness	Thickness	Color	Design	Ratings	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Material	Weight	Weight	Material Flammability Rating
Serpac 131,GY	PCB Supports	2.54 mm	0.1 in	Gray	Hand Held Split Sides	IP40 NEMA 1	38.1 mm	1.5 in	92 cm˛	14.2 in²	Box	Plastic ABS	0.19 lb	86.18 g	UL94 HB
Serpac 131,BK	PCB Supports	2.54 mm	0.1 in	Black	Hand Held Split Sides	IP40 NEMA 1	38.1 mm	1.5 in	92 cm˛	14.2 in²	Box	Plastic ABS	0.19 lb	86.18 g	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.500" (38.10mm)
