FISB002PB

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FISB002PB

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Rip Cord
Features	2 pcs per Pkg
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Ratings	OFNP
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Singlemode

Part	Features	Features	Cladding Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Tensile Strength	Style	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Core Diameter [diameter]	Ratings	Jacket (Insulation) Material	Jacket Color
Belden Inc. FISB002PB	Rip Cord	2 pcs per Pkg	125 µm	70 °C	0 °C	Singlemode	40.8 kg	Multiple Fibers	5.84 mm	0.23 in	9 µm	OFNP	Poly-Vinyl Chloride (PVC)	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 0.78

General part information

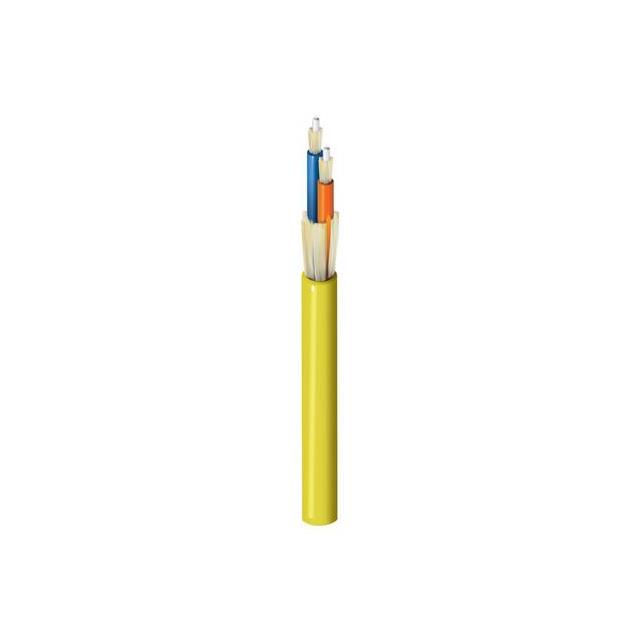

Fiber Optic Cable Yellow Singlemode 125µm

Technical documentation and resources
