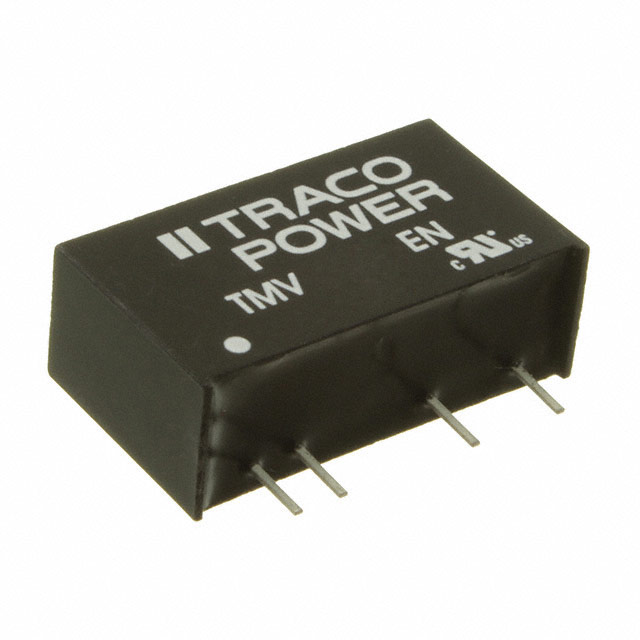

TMV 1215EN
ActiveTraco Power
DC DC CONVERTER 15V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMV 1215EN
ActiveTraco Power
DC DC CONVERTER 15V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMV 1215EN |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 65 mA |
| Efficiency | 66 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [x] | 22 mm |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.5 mm |
| Size / Dimension [z] | 0.49 in |
| Size / Dimension [z] | 12.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.20 | |
| 10 | $ 11.95 | |||
| 25 | $ 11.55 | |||
| 50 | $ 11.26 | |||
| 100 | $ 10.98 | |||
| 250 | $ 10.62 | |||
| 500 | $ 10.35 | |||
Description
General part information
TMV 1215 Series
Isolated Module DC DC Converter 1 Output 15V 65mA 10.8V - 13.2V Input
