Q-07017000R018i

Active

Amphenol Custom Cable

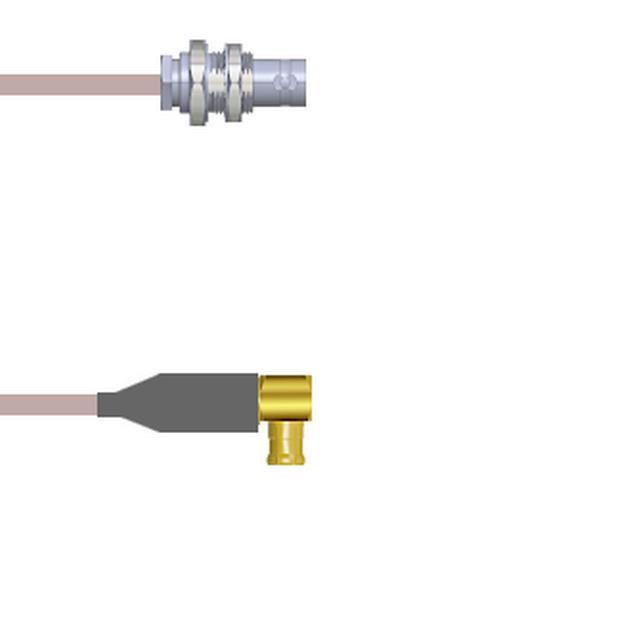

CBL ASSY BNC-MCX JACK-PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-07017000R018i

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-07017000R018i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-070170 Series

Part	1st Connector	Style	Frequency - Max [Max]	1st Connector Mounting Feature	2nd Connector	2nd Contact Gender	Length	Length	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	1st Connector Mounting Type	Features	Color	Cable Type	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-07017000R009i	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male	9 "	228.6 mm	Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB
Amphenol Custom Cable Q-07017000R048i	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male	48 in	1200 mm	Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB	4 ft
Amphenol Custom Cable Q-07017000R006i	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male	6 in	152.4 mm	Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB
Amphenol Custom Cable Q-07017000R018i	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male			Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB		457.2 mm	457.2 mm
Amphenol Custom Cable Q-07017000R001M	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male	39.4 in	1 m	Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB	3.3 ft
Amphenol Custom Cable Q-07017000R012i	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male	12 "	304.8 mm	Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB
Amphenol Custom Cable Q-07017000R.75M	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male	29.53 "	750 mm	Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB
Amphenol Custom Cable Q-07017000R.25M	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male			Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB			250 mm	9.843 "
Amphenol Custom Cable Q-07017000R003M	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male	118.1 in	3 m	Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB	9.8 '
Amphenol Custom Cable Q-07017000R024i	BNC Jack	BNC to MCX	2 GHz	Bulkhead - Front Side Nut	MCX Plug Right Angle	Male	24 "	609.6 mm	Female	Free Hanging (In-Line)	50 Ohms	Panel Mount	Shielded	Copper	RG-316 DB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 177.75
		25	$ 174.32
		50	$ 170.88
		100	$ 167.45
		250	$ 164.01

Description

General part information

Q-070170 Series

Cable Assembly Coaxial BNC to MCX RG-316 DB 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
