ISL97632IRT18Z-TK
ObsoleteIntersil
IC LED DRIVER RGLTR 50MA 8TDFN
Deep-Dive with AI
Search across all available documentation for this part.
ISL97632IRT18Z-TK
ObsoleteIntersil
IC LED DRIVER RGLTR 50MA 8TDFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISL97632IRT18Z-TK |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 50 mA |
| Frequency | 1.45 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

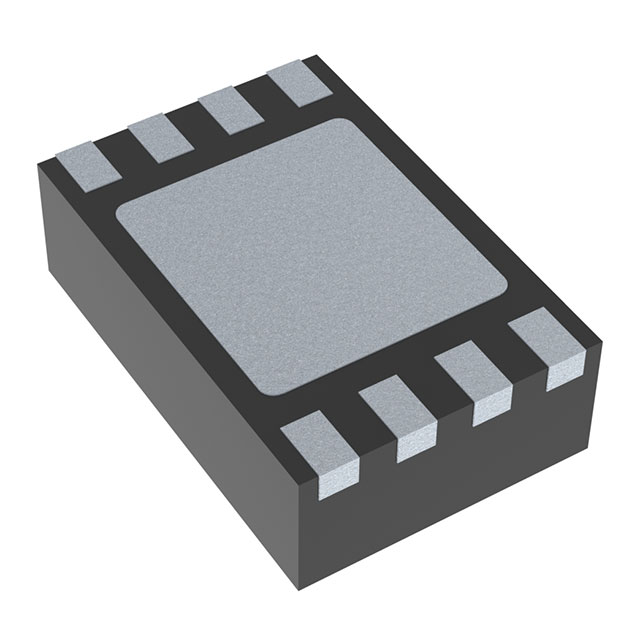

| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 114 | $ 2.65 | |
Description
General part information
ISL97632 Series
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Dimming 50mA 8-TDFN (2x3)
Documents
Technical documentation and resources
No documents available
