SMPJ-HKJ

Active

Hirose Electric USA, Inc.

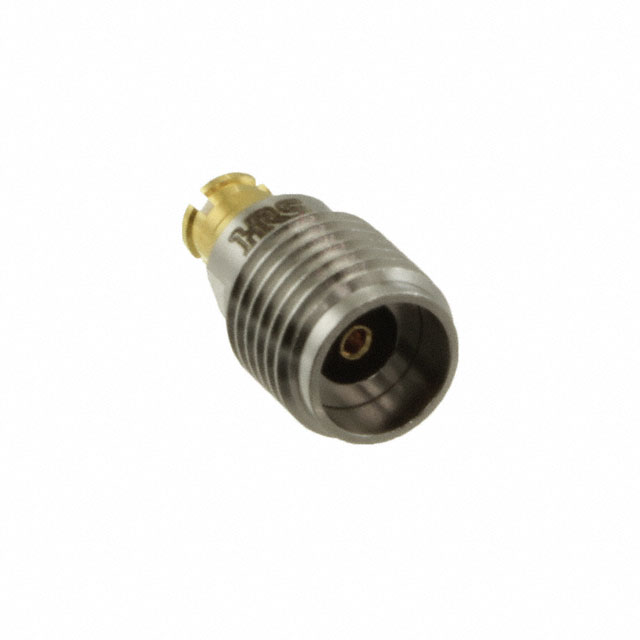

CONN ADAPT SMP JACK-2.92MM JACK

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN ADAPT SMP JACK-2.92MM JACK

Technical Specifications

Parameters and characteristics for this part

Specification	SMPJ-HKJ

Adapter Series	SMP to 2.92mm
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	SMP Jack, Female Socket
Convert To (Adapter End)	2.92 mm
Convert To (Adapter End)	OS-2.9 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Convert To (Adapter End)	Convert To (Adapter End)	Frequency - Max [Max]	Fastening Type	Dielectric Material	Conversion Type	Convert From (Adapter End)	Center Gender	Impedance	Style	Mating Cycles	Adapter Series	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Body Finish	Center Contact Plating	Center Contact Material	Body Material	Adapter Type
Hirose Electric USA, Inc. SMPJ-HKJ	2.92 mm	OS-2.9 Jack Female Socket	40 GHz	Snap-On Threaded	Polytetrafluoroethylene (PTFE)	Between Series	SMP Jack Female Socket	Female to Female	50 Ohms	Straight	500	SMP to 2.92mm	Free Hanging (In-Line)	-55 °C	125 °C	0.5 dB	Gold	Gold	Beryllium Copper	Beryllium Copper	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMP Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
