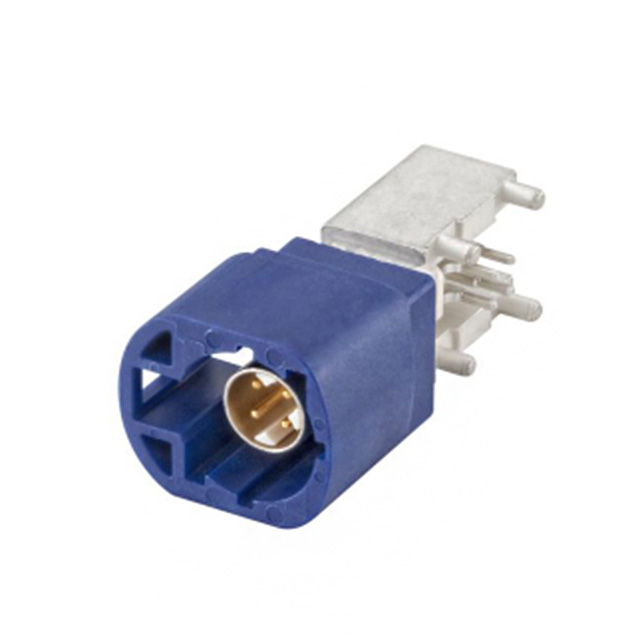

D4S20L-40MA5-C
ActiveRosenberger
CONN HSD FAKRA PLUG R/A 100OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D4S20L-40MA5-C
ActiveRosenberger
CONN HSD FAKRA PLUG R/A 100OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D4S20L-40MA5-C |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Latch Lock |
| Features | Code C |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Blue |
| Impedance | 100 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.76 | |
| 10 | $ 14.52 | |||
| 25 | $ 13.76 | |||
| 50 | $ 13.56 | |||
| 100 | $ 11.97 | |||
| Tape & Reel (TR) | 200 | $ 11.97 | ||
| 400 | $ 11.17 | |||
| 600 | $ 10.93 | |||
Description
General part information
D4S20L Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
