179-015-513R571

Active

MH Connectors

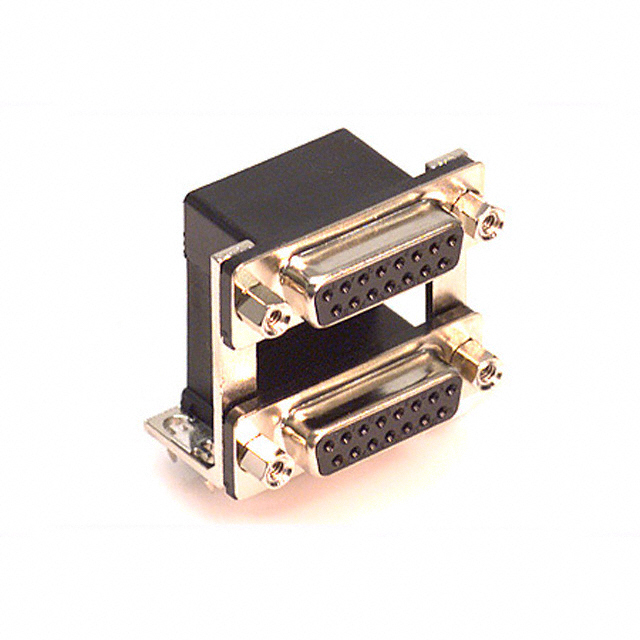

STACKED D SUB CONNECTOR, 179 SERIES, DA, RECEPTACLE, 15 CONTACTS, DA, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet +3

179-015-513R571

Active

MH Connectors

STACKED D SUB CONNECTOR, 179 SERIES, DA, RECEPTACLE, 15 CONTACTS, DA, RECEPTACLE

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	179-015-513R571

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2
Shell Size, Connector Layout [custom]	2
Termination	Solder

179-015 Series

Part	Dielectric Material	Features	Connector Style	Flange Feature	Material Flammability Rating	Termination	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Contact Form	Backset Spacing	Backset Spacing	Current Rating (Amps)	Number of Positions	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Mounting Type	Contact Material	Color	Contact Finish	Shell Material, Finish
MH Connectors 179-015-412-571	Polyester Glass Filled	Board Lock Grounding Indents	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	UL94 V-0	Solder	Flash	2	2	Plug Male Pins Receptacle Female Sockets	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold
MH Connectors 179-015-313R491	Polyamide (PA9T) Nylon 9T	Board Lock Grounding Indents Shielded	D-Sub - Stacked	Housing/Shell (4-40)	UL94 V-0	Solder	Flash	2	2	Plug Male Pins Receptacle Female Sockets	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold	Nickel Plated Steel
MH Connectors 179-015-313R671	Polyamide (PA9T) Nylon 9T	Board Lock Grounding Indents Shielded	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	UL94 V-0	Solder	Flash	2	2	Plug Male Pins Receptacle Female Sockets	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold	Nickel Plated Steel
MH Connectors 179-015-413R451	Polyamide (PA9T) Nylon 9T	Grounding Indents Shielded	D-Sub - Stacked	Housing/Shell (4-40)	UL94 V-0	Solder	Flash	2	2	Plug Male Pins Receptacle Female Sockets	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold	Nickel Plated Steel
MH Connectors 179-015-613R691	Polyamide (PA9T) Nylon 9T	Board Lock Grounding Indents Shielded	D-Sub - Stacked	Housing/Shell (4-40)	UL94 V-0	Solder	Flash	2	2	Male Pins Plug	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold	Nickel Plated Steel
MH Connectors 179-015-513R451	Polyamide (PA9T) Nylon 9T	Shielded	D-Sub - Stacked	Housing/Shell (4-40)	UL94 V-0	Solder	Flash	2	2	Receptacle Female Sockets	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold	Nickel Plated Steel
MH Connectors 179-015-513R571	Polyamide (PA9T) Nylon 9T	Board Lock Shielded	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	UL94 V-0	Solder	Flash	2	2	Receptacle Female Sockets	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold	Nickel Plated Steel
MH Connectors 179-015-512-571	Polyester Glass Filled		D-Sub - Stacked	Female Screwlock (4-40) Mating Side	UL94 V-0	Solder	Flash	2	2	Receptacle Female Sockets	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold
MH Connectors 179-015-313R481	Polyamide (PA9T) Nylon 9T	Grounding Indents Shielded	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	UL94 V-0	Solder	Flash	2	2	Plug Male Pins Receptacle Female Sockets	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold	Nickel Plated Steel
MH Connectors 179-015-413R491	Polyamide (PA9T) Nylon 9T	Board Lock Grounding Indents Shielded	D-Sub - Stacked	Housing/Shell (4-40)	UL94 V-0	Solder	Flash	2	2	Plug Male Pins Receptacle Female Sockets	Stamped	8.08 mm	0.318 "	5 A	15	2	105 ░C	-55 °C	Signal	Board Edge Right Angle Through Hole	Brass	Black	Gold	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.77
		10	$ 10.58
		25	$ 9.56
		40	$ 9.09
		80	$ 8.45
		230	$ 7.58
		440	$ 7.11
		945	$ 6.61
Newark	Each	50	$ 7.29

Description

General part information

179-015 Series

15, 15 Position D-Sub - Stacked Receptacle, Female Sockets Connector
