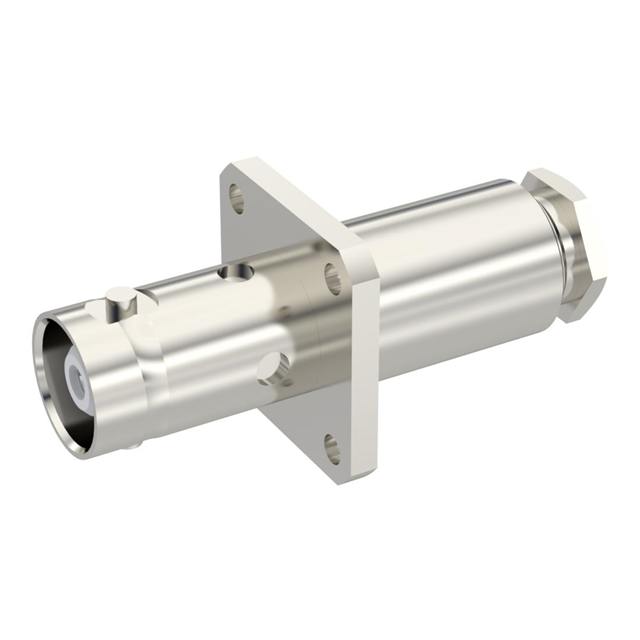

R316257000

Active

Radiall USA, Inc.

CONN BNC 0HZ TO 2GHZ 50OHM CLAMP ST CABLE MOUNT F SILVER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

CONN BNC 0HZ TO 2GHZ 50OHM CLAMP ST CABLE MOUNT F SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	R316257000

Body Finish	Nickel
Body Material	Brass
Cable Group	400, 223, 141, RG-58, 142
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

Part	Connector Style	Frequency - Max [Max]	Dielectric Material	Mounting Feature	Center Contact Plating	Cable Group	Impedance	Number of Ports	Shield Termination	Housing Color	Contact Termination	Connector Type	Fastening Type	Body Material	Mating Cycles	Center Contact Material	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]
Radiall USA, Inc. R316257000	BNC	2 GHz	Polytetrafluoroethylene (PTFE)	Flange	Silver	141 142 223 400 RG-58	50 Ohms	1	Clamp	Silver	Solder	Female Socket Jack	Bayonet Lock	Brass	500	Beryllium Copper Brass	Nickel	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 98.11

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
