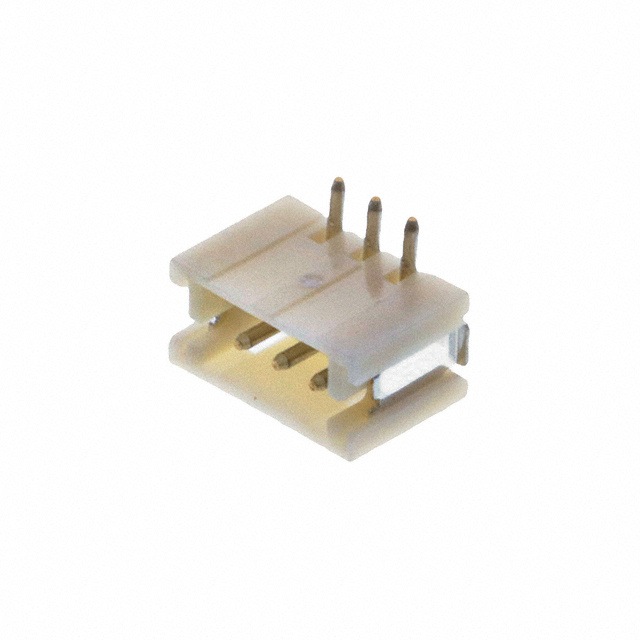

B3B-ZR-SM4-TFT
ActiveJST Sales America Inc.
CONN HEADER SMD 3POS 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
B3B-ZR-SM4-TFT
ActiveJST Sales America Inc.
CONN HEADER SMD 3POS 1.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B3B-ZR-SM4-TFT |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.197 in |
| Insulation Height | 5 mm |
| Insulation Material | Polyamide (PA6T), Glass Filled, Nylon 6T |
| Mated Stacking Heights | 6.4 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.70 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.70 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.50 | |||
| Tape & Reel (TR) | 1000 | $ 0.42 | ||
| 2000 | $ 0.40 | |||
| 3000 | $ 0.38 | |||
| 5000 | $ 0.36 | |||
| 10000 | $ 0.34 | |||
| 25000 | $ 0.33 | |||
Description
General part information
B3B-ZR Series
Connector Header Surface Mount 3 position 0.059" (1.50mm)
