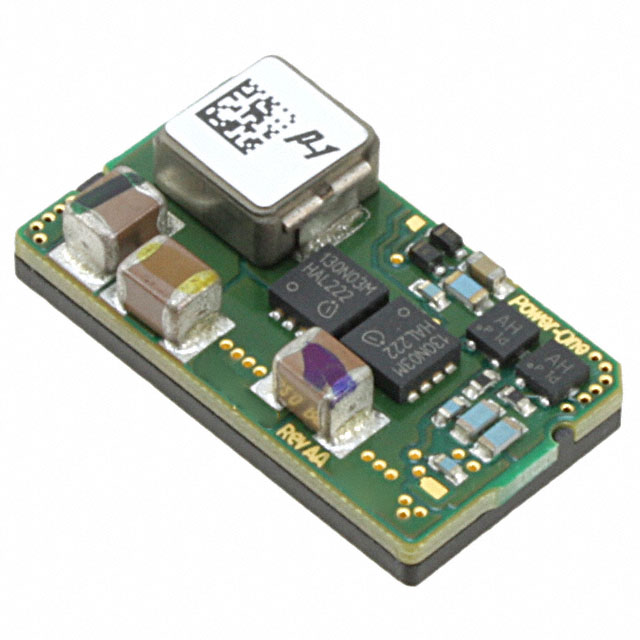

DP7007G-R100
ActiveEOS Power India Private Ltd
DC DC CONVERTER 0.7-5.5V
Deep-Dive with AI
Search across all available documentation for this part.
DP7007G-R100
ActiveEOS Power India Private Ltd
DC DC CONVERTER 0.7-5.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DP7007G-R100 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 7 A |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [x] | 22.2 mm |
| Size / Dimension [y] | 0.49 in |
| Size / Dimension [y] | 12.5 mm |
| Size / Dimension [z] | 6.5 mm |
| Size / Dimension [z] | 0.26 " |
| Type | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 26.89 | |
| 5 | $ 25.35 | |||
| 10 | $ 24.72 | |||
| 25 | $ 23.90 | |||
| 50 | $ 23.30 | |||
| Digi-Reel® | 1 | $ 26.89 | ||
| 5 | $ 25.35 | |||
| 10 | $ 24.72 | |||
| 25 | $ 23.90 | |||
| 50 | $ 23.30 | |||
| Tape & Reel (TR) | 100 | $ 22.72 | ||
| 200 | $ 22.15 | |||
| 300 | $ 21.82 | |||
Description
General part information
DP7007 Series
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 5.5V 7A 8V - 14V Input
Documents
Technical documentation and resources
No documents available
