TIM 2-0922

Active

Traco Power

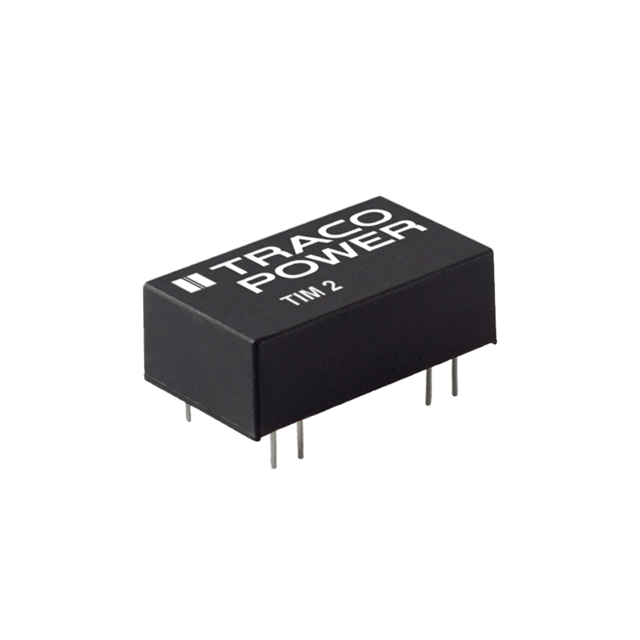

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTIM 2 Certs Datasheet

TIM 2-0922

Active

Traco Power

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

DocumentsTIM 2 Certs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TIM 2-0922

Applications	Medical
Current - Output (Max)	83 mA
Current - Output (Max)	83 mA
Efficiency	81 %
Features	Remote On/Off, OVP, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	95 °C
Operating Temperature [Min]	-40 °C
Package / Case	7 Leads
Package / Case	16-DIP Module
Power (Watts)	2 W
Size / Dimension [x]	0.96 in
Size / Dimension [x]	24.3 mm
Size / Dimension [y]	0.57 in
Size / Dimension [y]	14.4 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	12 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	5000 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

TIM 2 Series

Part	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Package / Case	Package / Case	Voltage - Output 1	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Efficiency	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TIM 2-2423	2 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	18 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-DIP Module	15 V	2	36 V	-15 V	67 mA	67 mA	-40 °C	95 °C	Through Hole
Traco Power TIM 2-1223SM	2 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	9 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-SMD Module	15 V	2	18 V	-15 V	67 mA	67 mA	-40 °C	95 °C	Surface Mount
Traco Power TIM 2-0922	2 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	4.5 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-DIP Module	12 V	2	12 V	-12 V	83 mA		-40 °C	95 °C	Through Hole	81 %	83 mA
Traco Power TIM 2-2419	2 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	18 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-DIP Module	9 V	1	36 V				-40 °C	95 °C	Through Hole	78 %		222 mA
Traco Power TIM 2-4819SM	2 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	36 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-SMD Module	9 V	1	75 V				-40 °C	95 °C	Surface Mount	78 %		222 mA
Traco Power TIM 2-0922SM	2 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	4.5 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-SMD Module	12 V	2	12 V	-12 V	83 mA		-40 °C	95 °C	Surface Mount	81 %	83 mA
Traco Power TIM 2-1222SM	2 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	9 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-SMD Module	12 V	2	18 V	-12 V	83 mA		-40 °C	95 °C	Surface Mount	81 %	83 mA
Traco Power TIM 2-4811SM	2 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	36 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-SMD Module	5 V	1	75 V				-40 °C	95 °C	Surface Mount	77 %		400 mA
Traco Power TIM 2-0910	1.7 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	4.5 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-DIP Module	3.3 V	1	12 V				-40 °C	95 °C	Through Hole	74 %		500 mA
Traco Power TIM 2-4815SM	2 W	0.96 in	0.57 in	10.2 mm	0.4 "	14.4 mm	24.3 mm	Isolated Module	Medical	36 V	5000 V	OVP Remote On/Off SCP	7 Leads	16-SMD Module	24 V	1	75 V				-40 °C	95 °C	Surface Mount	81 %		83 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 28.60
		10	$ 22.04
