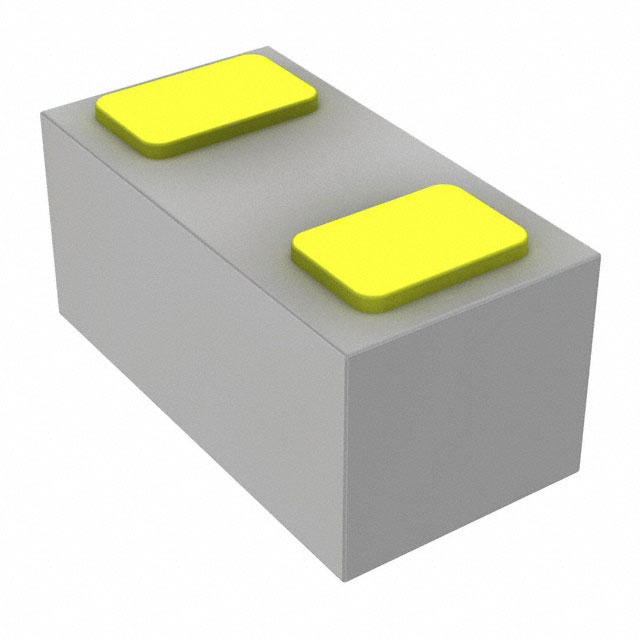

VSKY02400603-G4-08
ActiveVishay General Semiconductor - Diodes Division
DIODE SCHOT 40V 200MA CLP0603-2M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VSKY02400603-G4-08
ActiveVishay General Semiconductor - Diodes Division
DIODE SCHOT 40V 200MA CLP0603-2M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VSKY02400603-G4-08 |
|---|---|
| Capacitance @ Vr, F | 30 pF |
| Current - Average Rectified (Io) | 200 mA |
| Current - Reverse Leakage @ Vr | 10 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | CLP0603-2M |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 540 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.25 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| 5000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 10 | $ 0.25 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| 5000 | $ 0.06 | |||
| Tape & Reel (TR) | 15000 | $ 0.05 | ||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.04 | |||
| 105000 | $ 0.04 | |||
Description
General part information
VSKY02400603 Series
Diode 40 V 200mA Surface Mount CLP0603-2M
