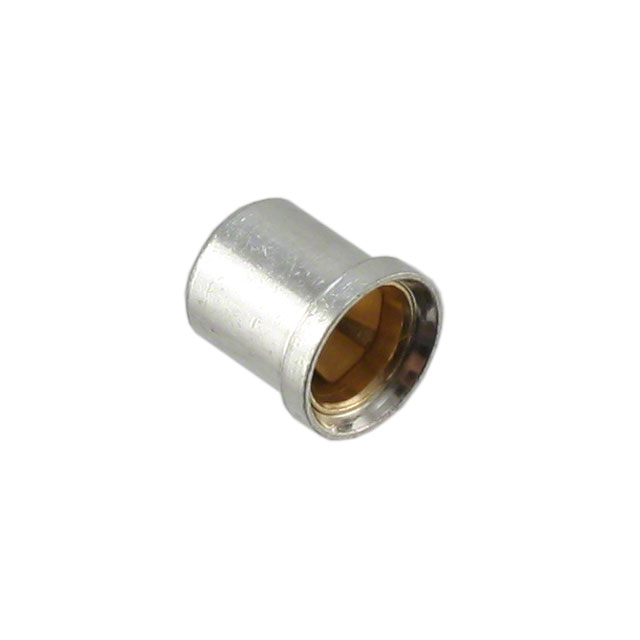

0321-0-43-80-08-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .084-.102 SOLDER

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .084-.102 SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	0321-0-43-80-08-27-10-0

Accepts Pin Diameter [Max]	0.102 "
Accepts Pin Diameter [Max]	2.59 mm
Accepts Pin Diameter [Min]	0.084 "
Accepts Pin Diameter [Min]	2.13 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Features	Knockout Bottom (Organic Fiber Plug®)
Flange Diameter [diameter]	3.96 mm
Flange Diameter [diameter]	0.156 in
Length - Overall	4.19 mm
Length - Overall	0.165 in
Mounting Hole Diameter [diameter]	0.144 "
Mounting Hole Diameter [diameter]	3.66 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.122 in
Pin Hole Diameter [diameter]	3.1 mm
Socket Depth	4.19 mm
Socket Depth	0.165 in
Tail Type	No Tail
Termination	Solder

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall	Length - Overall	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Features	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Socket Depth	Socket Depth	Operating Temperature [Min]	Operating Temperature [Max]	Termination
Mill-Max Manufacturing Corp. 0321-0-43-80-08-27-10-0	3.96 mm	0.156 in	Gold	0.144 "	3.66 mm	4.19 mm	0.165 in	0.122 in	3.1 mm	No Tail	0.76 Ám	30 Áin	Knockout Bottom (Organic Fiber Plug®)	0.102 "	0.084 "	2.59 mm	2.13 mm	Beryllium Copper	4.19 mm	0.165 in	-55 °C	125 °C	Solder
Mill-Max Manufacturing Corp. 0321-0-15-80-08-14-10-0	3.96 mm	0.156 in	Gold	0.144 "	3.66 mm	4.19 mm	0.165 in			No Tail	0.25 Ám	10 Áin		0.102 "	0.084 "	2.59 mm	2.13 mm	Beryllium Copper	4.19 mm	0.165 in	-55 °C	125 °C	Solder
Mill-Max Manufacturing Corp. 0321-0-15-80-08-80-10-0	3.96 mm	0.156 in	Tin	0.144 "	3.66 mm	4.19 mm	0.165 in			No Tail	0.76 Ám	30 Áin		0.102 "	0.084 "	2.59 mm	2.13 mm	Beryllium Copper	4.19 mm	0.165 in	-55 °C	125 °C	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.084" ~ 0.102" (2.13mm ~ 2.59mm) No Tail Solder
