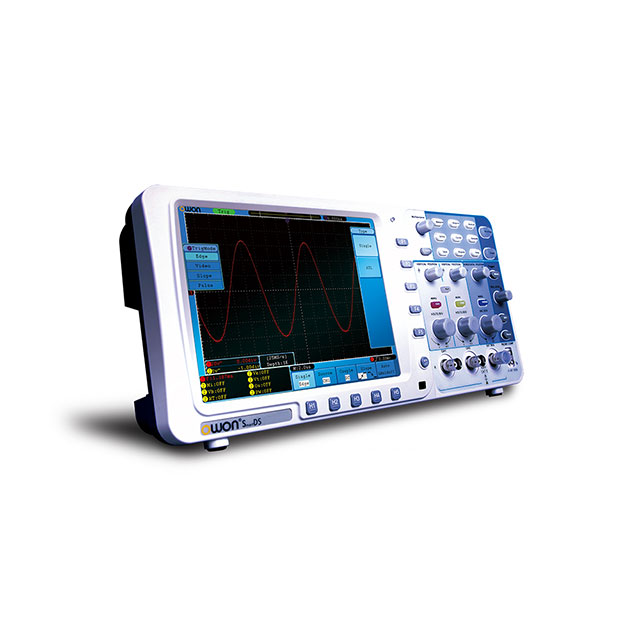

SDS7102E-V

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 100MHZ 2 CH 1GS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 100MHZ 2 CH 1GS/S

Technical Specifications

Parameters and characteristics for this part

Specification	SDS7102E-V

Bandwidth	100 MHz
Channels	2
Display Type	LCD - Color
Function	Record
Includes	Probe, Power Cord, USB Cable, Bag, Manual
Input Impedance	1 M, 15 pF
Interface	USB, Ethernet
Memory Size	1 Mpts
Probe Type	Passive 10:1 (2)
Rise Time (Typ)	3.5 ns
Sampling Rate (Per Second)	1 G
Type	Bench
Voltage - Input (Max) [Max]	400 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Display Type	Sampling Rate (Per Second)	Channels	Bandwidth	Includes	Probe Type	Memory Size	Function	Voltage - Input (Max) [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Rise Time (Typ)	Interface	Input Impedance	Type
Owon Technology Lilliput Electronics (USA) Inc SDS7102E-V	LCD - Color	1 G	2	100 MHz	Bag Manual Power Cord Probe USB Cable	Passive 10:1 (2)	1 Mpts	Record	400 V	100 VAC	240 VAC	3.5 ns	Ethernet USB	1 M 15 pF	Bench
Owon Technology Lilliput Electronics (USA) Inc SDS7102V	LCD - Color	1 G	2	100 MHz	Bag Battery Manual Power Cord Probe USB Cable	Passive 10:1 (2)	10 kpts	Record	400 V	100 VAC	240 VAC	3.5 ns	Ethernet USB	1 M 15 pF	Bench

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 399.00

General part information

100 MHz Bench Oscilloscopes Ethernet, USB Interface LCD - Color Display 2 Channel 400V Record

Technical documentation and resources

No documents available
