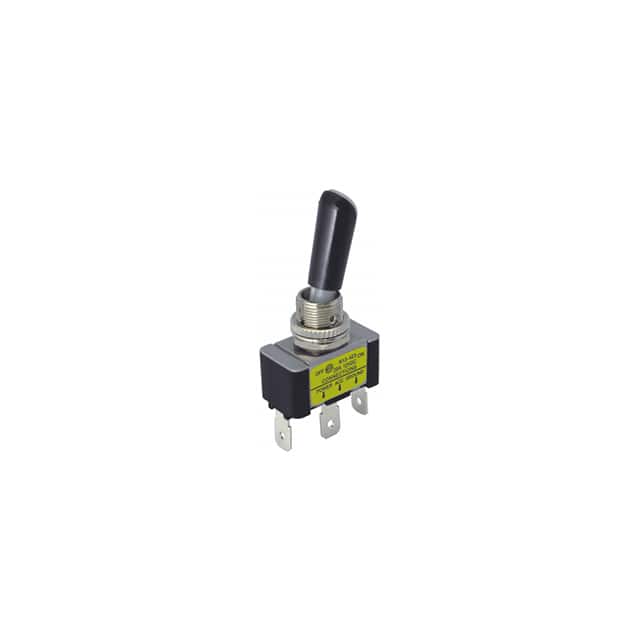

TA1C-1A-DC-1-RG

Active

Switch Components

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS

Search across all available documentation for this part.

Active

Switch Components

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	TA1C-1A-DC-1-RG

Actuator Length [x]	25 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Illuminated
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	12 VDC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Current Rating (Amps)	Illumination Type, Color	Electrical Life	Termination Style	Illumination	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Bushing Thread	Bushing Thread	Illumination Voltage (Nominal)	Actuator Type
Switch Components TA1C-1A-DC-1-RG	20 A	Green/Red LED	6000 Cycles	Quick Connect - 0.250" (6.3mm)	Illuminated	12.2 mm	12 V	25 mm	85 °C	-20 C	SPST	On-Off	M12	0.75	12 VDC	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
