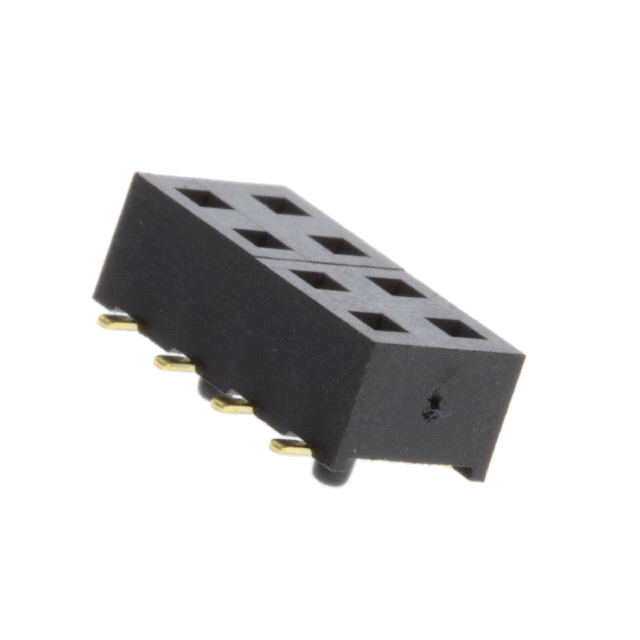

FM20204VBDN

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, LOW PROFILE, DU

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, LOW PROFILE, DU

Technical Specifications

Parameters and characteristics for this part

Part	Contact Shape	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Rows	Fastening Type	Number of Positions Loaded	Termination	Contact Material	Ingress Protection	Mounting Type	Contact Type	Connector Type	Contact Finish Thickness - Mating	Insulation Height	Insulation Height
METZ CONNECT USA Inc. FM20204VBDN	Square	Polyamide (PA6) Nylon 6	Black	0.1 in	2.54 mm	8	-40 °C	105 ░C	Gold	2	Push-Pull	All	Solder	Copper Alloy	IP00	Surface Mount	Female Socket	Receptacle
METZ CONNECT USA Inc. FM20204VBNN	Square	Polyester Polyethylene Terephthalate (PET)	Black	0.1 in	2.54 mm	4	-40 °C	105 ░C	Gold	1	Push-Pull	All	Solder	Copper Alloy	IP00	Surface Mount	Female Socket	Receptacle	Flash	0.28 in	7.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
