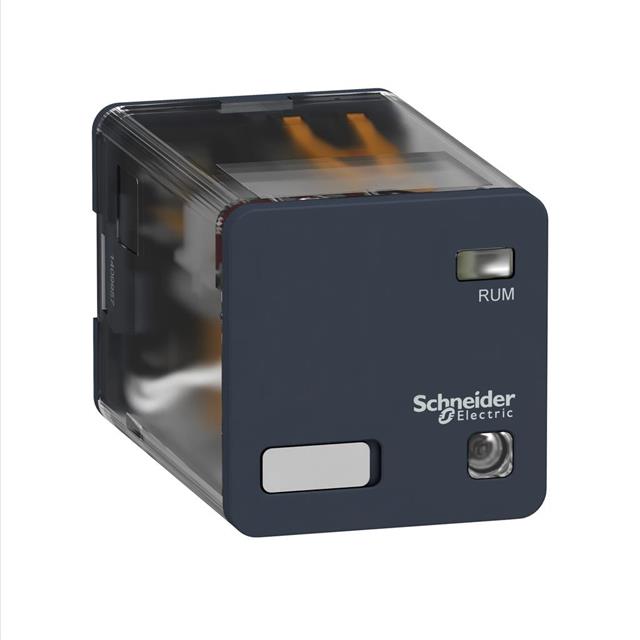

RUMC33B7

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, UNIVERSAL PLUG-IN RELAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RUMC33B7

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, UNIVERSAL PLUG-IN RELAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RUMC33B7

Approval Agency	CSA, UL, EAC
Coil Current	333.3 mA
Coil Resistance	72 Ohms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Lighted Indicator
Load - Max Switching	2500 VA, 280 W
Mounting Type	Socketable
Must Operate Voltage	19.2 VAC
Must Release Voltage	3.6 VAC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

RUMC33 Series

Part	Must Release Voltage	Contact Rating (Current)	Release Time	Load - Max Switching	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Operate Time	Coil Current	Contact Material	Switching Voltage	Termination Style	Coil Resistance	Coil Voltage	Coil Type	Contact Form	Mounting Type	Approval Agency	Features
SQUARE D BY SCHNEIDER ELECTRIC RUMC33GD	12.5 VDC	10 A	20 ms	280 W 2500 VA	General Purpose	-40 °C	55 °C	100 VDC	20 ms	17.1 mA	Silver Nickel (AgNi)	28 VDC 250 VAC	Plug In	7.3 kOhms	125 VDC	Non Latching	3PDT (3 Form C)	Socketable	CSA EAC UL	Lighted Indicator
SQUARE D BY SCHNEIDER ELECTRIC RUMC33B7	3.6 VAC	10 A	20 ms	280 W 2500 VA	General Purpose	-40 °C	55 °C	19.2 VAC	20 ms	333.3 mA	Silver Nickel (AgNi)	28 VDC 250 VAC	Plug In	72 Ohms	24 VAC	Non Latching	3PDT (3 Form C)	Socketable	CSA EAC UL	Lighted Indicator
SQUARE D BY SCHNEIDER ELECTRIC RUMC33BD	2.4 VDC	10 A	20 ms	280 W 2500 VA	General Purpose	-40 °C	55 °C	19.2 VDC	20 ms	51.1 mA	Silver Nickel (AgNi)	28 VDC 250 VAC	Plug In	470 Ohms	24 VDC	Non Latching	3PDT (3 Form C)	Socketable	CSA EAC UL	Lighted Indicator
SQUARE D BY SCHNEIDER ELECTRIC RUMC33F7	18 VAC	10 A	20 ms	280 W 2500 VA	General Purpose	-40 °C	55 °C	96 VAC	20 ms	70.6 mA	Silver Nickel (AgNi)	28 VDC 250 VAC	Plug In	1.7 kOhms	120 VAC	Non Latching	3PDT (3 Form C)	Socketable	CSA EAC UL	Lighted Indicator
SQUARE D BY SCHNEIDER ELECTRIC RUMC33P7	34.5 VAC	10 A	20 ms	280 W 2500 VA	General Purpose	-40 °C	55 °C	184 VAC	20 ms	33.8 mA	Silver Nickel (AgNi)	28 VDC 250 VAC	Plug In	6.8 kOhms	230 VAC	Non Latching	3PDT (3 Form C)	Chassis Mount	CSA EAC UL	Lighted Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 22.37

Description

General part information

RUMC33 Series

General Purpose Relay 3PDT (3 Form C) 24VAC Coil Socketable
