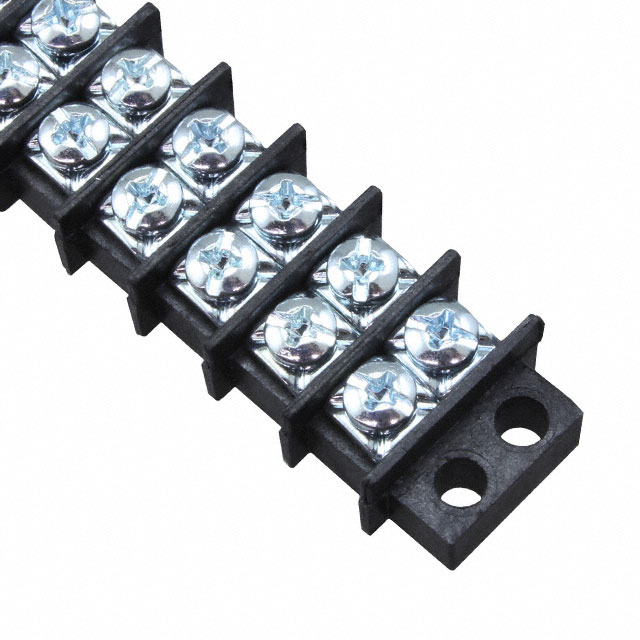

1509W

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.375"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.375"

Technical Specifications

Parameters and characteristics for this part

Specification	1509W

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Rows	2
Number of Wire Entries	18
Operating Temperature	110 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

Part	Wire Gauge [Max]	Wire Gauge [Min]	Top Termination	Material Flammability Rating	Bottom Termination	Number of Wire Entries	Terminal Screw Material	Barrier Type	Number of Rows	Features	Current Rating (Amps)	Material - Insulation	Pitch [x]	Pitch [x]	Terminal Block Type	Operating Temperature	Mounting Type	Terminal Screw Finish
Curtis Industries 1509W	22 AWG	10 AWG	Screws with Captive Plate	UL94 V-0	Closed	18	Steel	2 Wall (Dual)	2	Flange	20 A	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	Barrier Block	110 °C	Chassis Panel
Curtis Industries 1509-3/4ST	22 AWG	10 AWG	Screws with Solder Lugs Single	UL94 V-0	Closed	18		2 Wall (Dual)	2	Flange	20 A	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	Barrier Block	110 °C	Chassis Panel	Tin
Curtis Industries 1509-Y	22 AWG	10 AWG	Screws	UL94 V-0	PC Pin	18	Steel	2 Wall (Dual)	2	Flange	20 A	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	Barrier Block	110 °C	Chassis Panel Through Hole
Curtis Industries 1509-ST	22 AWG	10 AWG	Screws with Solder Lugs Dual	UL94 V-0	Closed	18		2 Wall (Dual)	2	Flange	20 A	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	Barrier Block	110 °C	Chassis Panel	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
