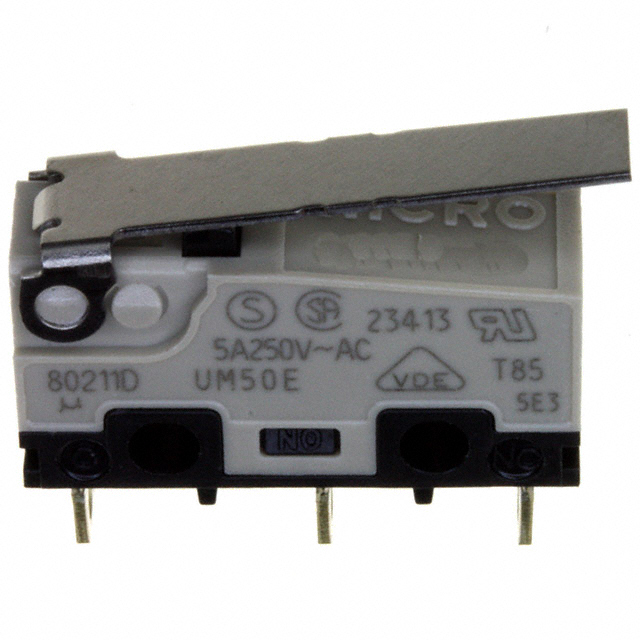

UM50E10C01

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Pretravel	Pretravel	Release Force	Circuit	Differential Travel	Differential Travel	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Operating Force	Switch Function	Current Rating (Amps)	Operating Position	Operating Position	Actuator Type	Voltage Rating - AC
Honeywell Sensing and Productivity Solutions UM50E10C01	0.11 in	2.8 mm	3 gf	SPDT	0.03 in	0.76 mm	1.2 mm	0.047 "	-25 °C	82 °C	Chassis Mount	Solder Lug	56 gf	On-Mom	5 A	8.4 mm	0.33 in	Lever Straight	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount

Technical documentation and resources
