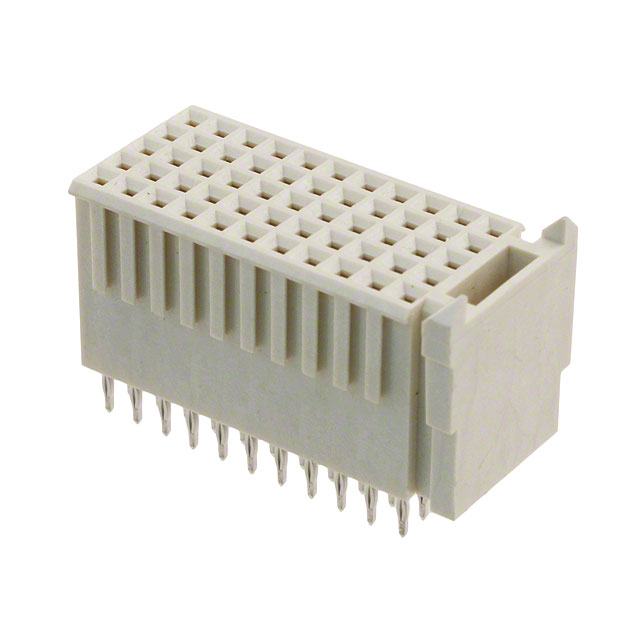

HM2S30PE5100N9LF
ActiveAmphenol ICC (FCI)
CONN RECEPT 55POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
HM2S30PE5100N9LF
ActiveAmphenol ICC (FCI)
CONN RECEPT 55POS 2MM PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HM2S30PE5100N9LF |
|---|---|
| Connector Style | C 11 |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole |
| Number of Positions | 55 positions |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 750 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.93 | |
| 10 | $ 6.08 | |||
| 25 | $ 5.48 | |||
| 40 | $ 5.21 | |||
| 80 | $ 4.83 | |||
| 230 | $ 4.33 | |||
| 440 | $ 4.05 | |||
| 945 | $ 3.76 | |||
| 2400 | $ 3.47 | |||
Description
General part information
HM2S30 Series
55 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole
