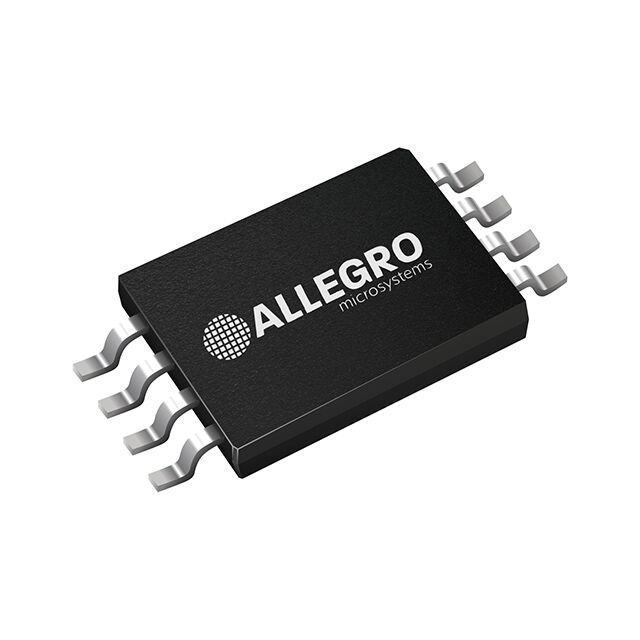

A1569ELJTR-T
ObsoleteAllegro MicroSystems
IC LED DRIVER LINEAR 150MA 8SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1569ELJTR-T
ObsoleteAllegro MicroSystems
IC LED DRIVER LINEAR 150MA 8SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A1569ELJTR-T |
|---|---|
| Applications | Lighting |
| Current - Output / Channel | 150 mA |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| Supplier Device Package | 8-SOIC-EP |
| Type | Linear |
| Voltage - Supply (Max) [Max] | 24 V |
| Voltage - Supply (Min) [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
A1569 Series
LED Driver IC 1 Output Linear Dimming 150mA 8-SOIC-EP
Documents
Technical documentation and resources
