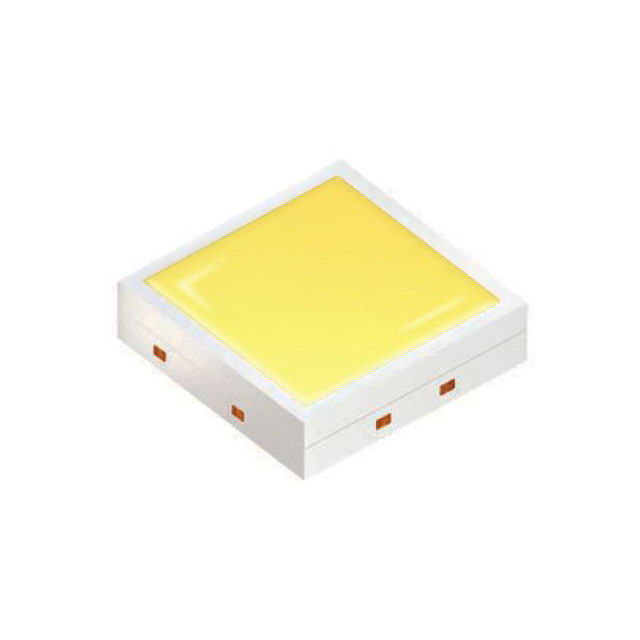

GW PLLRA1.EM-N1N3-XX55-1-700-R18

Active

ams-OSRAM USA INC.

LED OSCONIQ NEUT WHT 4000K SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED OSCONIQ NEUT WHT 4000K SMD

Technical Specifications

Parameters and characteristics for this part

Specification	GW PLLRA1.EM-N1N3-XX55-1-700-R18

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	80
Current - Max [Max]	1.5 A
Flux @ 85°C, Current - Test	295 lm
Flux @ 85°C, Current - Test [Max]	310 lm
Flux @ 85°C, Current - Test [Min]	280 lm
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Lumens/Watt @ Current - Test	151 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead Exposed Pad
Size / Dimension [x]	0.094 in
Size / Dimension [x]	2.4 mm
Size / Dimension [y]	0.094 in
Size / Dimension [y]	2.4 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	3.5 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.8 V

Part	Mounting Type	Voltage - Forward (Vf) (Typ)	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	Color	Thermal Resistance of Package [custom]	CCT (K)	Viewing Angle	Supplier Device Package	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Max [Max]
ams-OSRAM USA INC. GW PLLRA1.EM-N1N3-XX55-1-700-R18	Surface Mount	2.8 V	2-SMD No Lead Exposed Pad	0.094 in	2.4 mm	0.094 in	2.4 mm	310 lm	295 lm	280 lm	Neutral White	3.5 °C/W	4000 K	120 °	SMD	80	151 lm/W	0.7 mm	0.028 in	1.5 A
ams-OSRAM USA INC. GW PLLRA1.EM-M8MF-XX57-1-700-R18			2-SMD No Lead Exposed Pad	0.094 in	2.4 mm	0.094 in	2.4 mm								SMD			0.7 mm	0.028 in
ams-OSRAM USA INC. GW PLLRA1.EM-N1N3-XX53-1-700-R18	Surface Mount	2.8 V	2-SMD No Lead Exposed Pad	0.094 in	2.4 mm	0.094 in	2.4 mm	310 lm	295 lm	280 lm	Cool White	3.5 °C/W	5000 K	120 °	SMD	80	151 lm/W	0.7 mm	0.028 in	1.5 A
ams-OSRAM USA INC. GW PLLRA1.EM-M7M9-XX58-1-700-R18			2-SMD No Lead Exposed Pad	0.094 in	2.4 mm	0.094 in	2.4 mm								SMD			0.7 mm	0.028 in
ams-OSRAM USA INC. GW PLLRA1.EM-N1N3-XX52-1-700-R18	Surface Mount	2.8 V	2-SMD No Lead Exposed Pad	0.094 in	2.4 mm	0.094 in	2.4 mm	310 lm	295 lm	280 lm	Cool White	3.5 °C/W	5700 K	120 °	SMD	80	151 lm/W	0.7 mm	0.028 in	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting OSCONIQ® C 2424 White, Neutral 4000K 2.8V 700mA 120° 2-SMD, No Lead Exposed Pad
