9110-18BLK
ActiveE-Z-Hook
TEST LEAD SOCKET TO SOCKET 18"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9110-18BLK |
|---|---|
| 1st Connector | 0.025 in |
| 1st Connector | Socket, Square |
| 1st Connector | 0.64 mm |
| 2nd Connector | Socket, Square |
| 2nd Connector | 0.64 mm |
| 2nd Connector | 0.025 in |
| Cable Length | 457.2 mm |
| Cable Length | 18 in |
| Configuration | Socket to Socket |
| Contents | 1 Lead, Black |
| Current Rating (Amps) | 2.5 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 105 °C |
| Temperature Range | 221 °F |
| Voltage - Rated | 1 kV |
| Voltage - Rated | 1000 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.74 | |
| 5 | $ 4.53 | |||
| 10 | $ 4.44 | |||
| 25 | $ 4.32 | |||
| 50 | $ 4.24 | |||
| 100 | $ 4.15 | |||
| 250 | $ 4.05 | |||
| 500 | $ 3.97 | |||
| 1000 | $ 3.89 | |||
Description
General part information
9110-18 Series

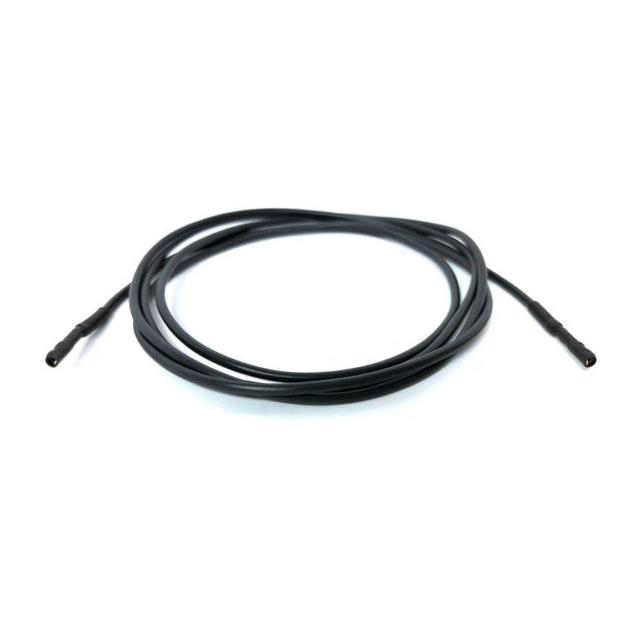

18.0" (457.20mm) Socket, Square, 0.025" (0.64mm) To Socket, Square, 0.025" (0.64mm) Test Lead 1000VDC (1kV) 1 Lead, Black
