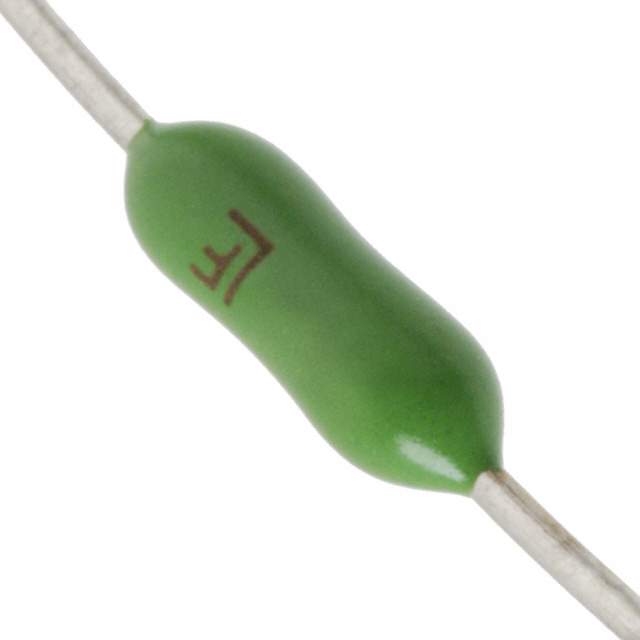

0251.200MAT1L

Active

Littelfuse/Commercial Vehicle Products

FUSE CARTRIDGE VERY FAST ACTING 0.2A 125V AXIAL 2.8 X 7.11MM CERAMIC AMMO MEDICAL CCC/CSA/PSE/QPL/TUV/UL

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE CARTRIDGE VERY FAST ACTING 0.2A 125V AXIAL 2.8 X 7.11MM CERAMIC AMMO MEDICAL CCC/CSA/PSE/QPL/TUV/UL

Technical Specifications

Parameters and characteristics for this part

Specification	0251.200MAT1L

Approval Agency	CSA, cURus
Breaking Capacity @ Rated Voltage	300 A, 50 A
Current Rating (Amps)	0.2 A
DC Cold Resistance	0.895 Ohms
Fuse Type	Board Mount
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Response Time	Fast Blow
Size / Dimension [diameter]	0.11 in
Size / Dimension [diameter]	2.8 mm
Size / Dimension [x]	0.28 in
Size / Dimension [x]	7.11 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

FUSE 125V PICO II FA RoHS .200A

Part	Voltage Rating - AC	Package / Case	DC Cold Resistance	Response Time	Mounting Type	Approval Agency	Breaking Capacity @ Rated Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Fuse Type	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products 0251.200MAT1L	125 V	Axial	0.895 Ohms	Fast Blow	Through Hole	CSA cURus	50 A 300 A	-55 °C	125 °C	125 VDC	Board Mount	0.11 in	0.28 in	7.11 mm	2.8 mm	0.2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The PICO® II Very Fast-Acting Fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package.
