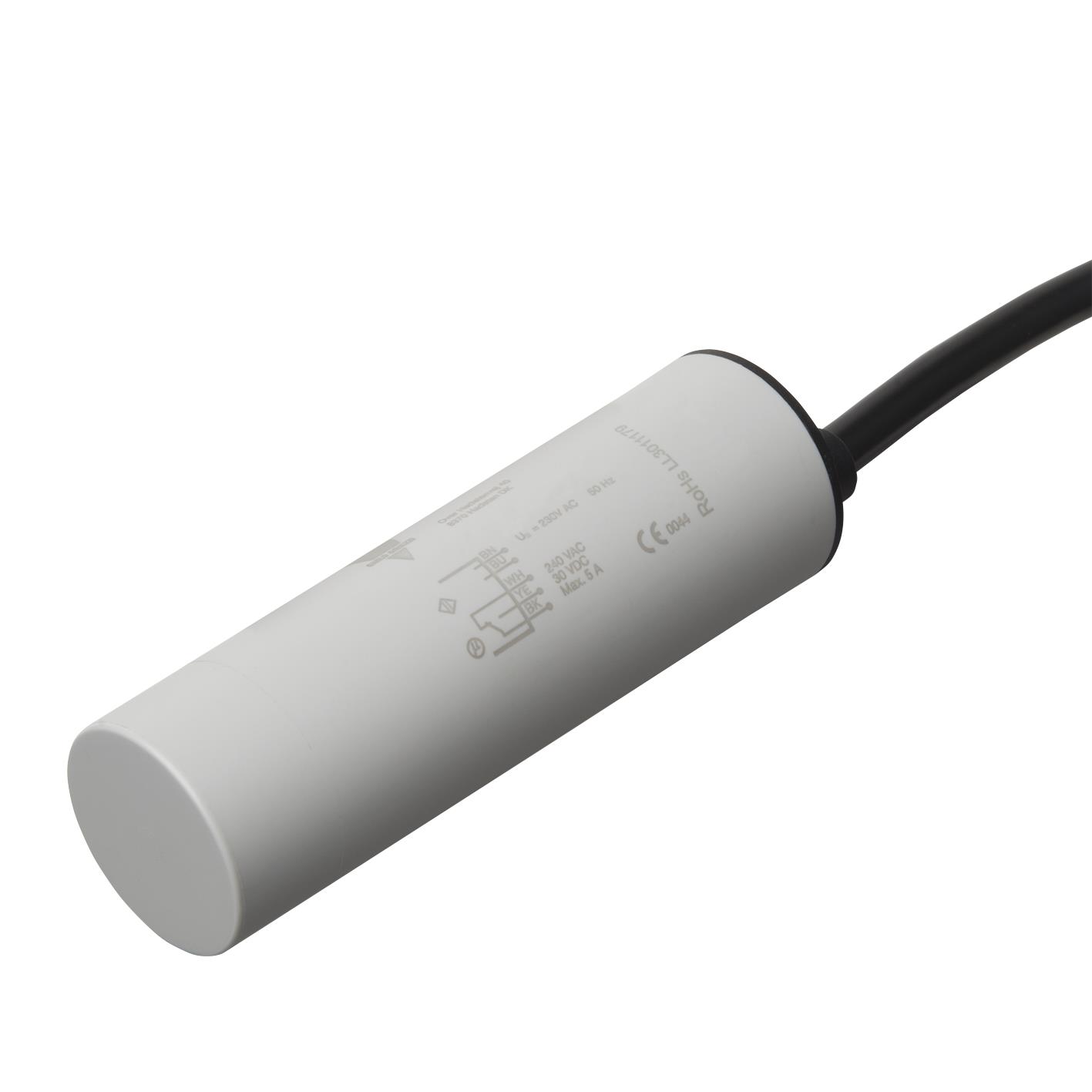

CB32CLN20TC
ActiveCARLO GAVAZZI
SENSOR: CAPACITIVE; RANGE: 2÷20MM; 20÷250VAC; OUT: SCR; 2M; PBT
Deep-Dive with AI
Search across all available documentation for this part.
CB32CLN20TC
ActiveCARLO GAVAZZI
SENSOR: CAPACITIVE; RANGE: 2÷20MM; 20÷250VAC; OUT: SCR; 2M; PBT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CB32CLN20TC |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | NEMA 4, NEMA 13, NEMA 1, IP67, NEMA 6, NEMA 3 |
| Material - Body | Plastic |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | SCR-NC/NO, 2-Wire |
| Package / Case | Cylinder |
| Sensing Distance | 0.787 in |
| Sensing Distance | 20 mm |
| Sensor Type | Capacitive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 250 VAC |
| Voltage - Supply [Min] | 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| TME | N/A | 1 | $ 166.41 | |
| 5 | $ 155.31 | |||
| 10 | $ 144.22 | |||
Description
General part information
CB32CLN20 Series
SENSOR: CAPACITIVE; RANGE: 2÷20MM; 20÷250VAC; OUT: SCR; 2M; PBT
Documents
Technical documentation and resources
No documents available
