A1287JFGR

Obsolete

Hoffman Enclosures, Inc.

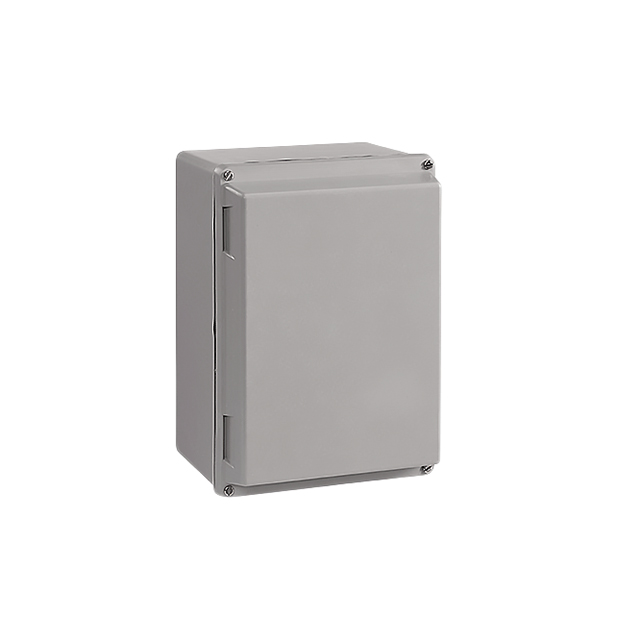

JUNCT BOX FIBER 12.01"L X 7.99"W

Search across all available documentation for this part.

Obsolete

Hoffman Enclosures, Inc.

JUNCT BOX FIBER 12.01"L X 7.99"W

Technical Specifications

Parameters and characteristics for this part

Specification	A1287JFGR

Area (L x W)	96 in˛
Area (L x W)	619 cm˛
Color	Gray
Container Type	Junction Box
Design	Hinged Door, Lid
Features	PCB Supports, Sealing Gasket
Height [z]	7.008 in
Height [z]	178 mm
Material	Fiberglass/Polyester
Ratings	UL-508A, NEMA 12, NEMA 3R, NEMA 13, NEMA 3, NEMA 4X, IP66, NEMA 4
Size / Dimension [x]	305 mm
Size / Dimension [x]	12.008 in
Size / Dimension [y]	203 mm
Size / Dimension [y]	7.992 in
Weight	2.7 kg
Weight	6 lbs

Part	Material	Features	Color	Area (L x W)	Area (L x W)	Weight	Weight	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Design	Ratings
Hoffman Enclosures, Inc. A1287JFGR	Fiberglass/Polyester	PCB Supports Sealing Gasket	Gray	96 in˛	619 cm˛	2.7 kg	6 lbs	7.008 in	178 mm	203 mm	305 mm	12.008 in	7.992 in	Junction Box	Hinged Door Lid	IP66 NEMA 12 NEMA 13 NEMA 3 NEMA 3R NEMA 4 NEMA 4X UL-508A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Junction Box Fiberglass/Polyester Gray Hinged Door, Lid 12.008" L x 7.992" W (305.00mm x 203.00mm) X 7.008" (178.00mm)
