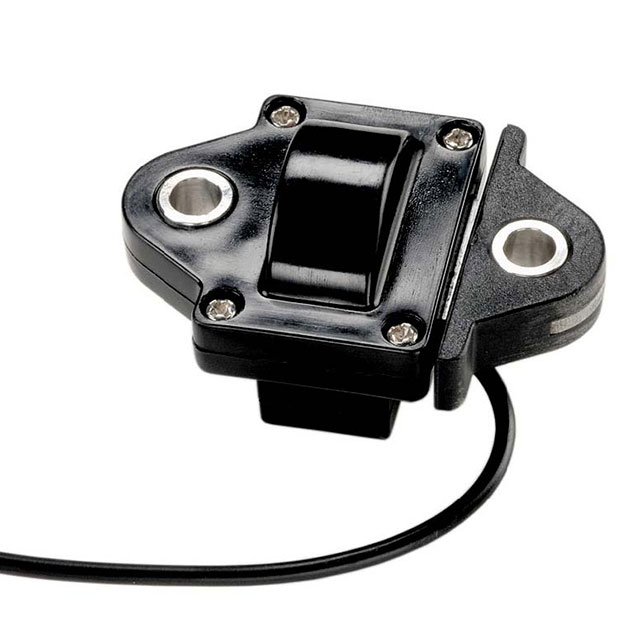

FT2431-0000-0025-L

Obsolete

TE Connectivity Measurement Specialties

SENSOR FORCE LOAD CELL 25LBS

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR FORCE LOAD CELL 25LBS

Technical Specifications

Parameters and characteristics for this part

Specification	FT2431-0000-0025-L

Accuracy	1 %
Compensated Temperature [Max]	50 °C
Compensated Temperature [Min]	0 °C
Includes	Sensor
Operating Force	25 lbs
Operating Force	11.34 kgf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Sensor Type	Load Cell

Part	Compensated Temperature [Min]	Compensated Temperature [Max]	Sensor Type	Operating Force	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Includes
TE Connectivity Measurement Specialties FT2431-0000-0025-L	0 °C	50 °C	Load Cell	25 lbs	11.34 kgf	85 °C	-40 °C	1 %	Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SENSOR FORCE LOAD CELL 25LBS

Technical documentation and resources
