POE21-240
ActivePhihong USA

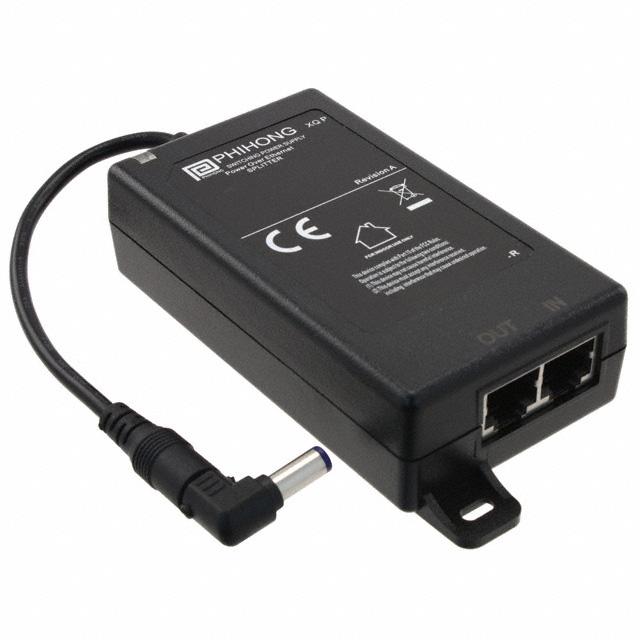

POE SPLITTER 21W 24V DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
POE21-240
ActivePhihong USA
POE SPLITTER 21W 24V DESKTOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | POE21-240 |
|---|---|
| Approval Agency | CE |
| Compliance | IEEE802.3at |
| Current - Output | 875 mA |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | 80 % |
| Features | OTP, SCP, OVP, OCP |
| Input Connector | RJ45 (Data, Power) |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | RJ45 (Data), 2.1mm Plug (Power) |
| Power (Watts) - Per Port | 21 W |
| Type | Splitter |
| Voltage - Output | 24 V |
| Weight | 140.61 g |
| Weight | 0.31 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 39.88 | |
| 10 | $ 36.69 | |||
| 25 | $ 33.65 | |||
| 100 | $ 30.87 | |||
| 250 | $ 28.33 | |||
Description
General part information
POE21 Series
24V Power Over Ethernet (POE) 1 Port Splitter 10/100/1000 Mbps Data Rate
